Rent Accelerometer Calibrators

Portable Vibration Calibrators and Workstations

Whether verifying sensors that are out of calibration interval or using fully calibrated units, good practice is to verify performance prior to any important test. Handheld and portable calibration systems not only verify sensor performance, but can also be used to test additional components including cabling, signal conditioning, DAQ, and alert/alarm levels. Many options are available.

  • 394C06 – PCB Piezotronics handheld single point 159.2 Hz verification for payloads (sensor/cabling/mounting hardware) up to 210 gram mass. Select between 1g rms or peak output. Offers constant acceleration, velocity, displacement.
  • 699B02 – PCB/IMI unit similar to 394C06 but meant for heavier sensors, supporting payloads up to 250 gram mass.
  • REF2510R – Wilcoxon rugged industrial shaker kit: REF2510R portable vibration reference source; enables quick sensor verification in the field, with user-selectable operating frequency and output type (peak or RMS).
  • 9100D - Modal Shop Portable Shaker Table providing a known and repeatable dynamic excitation level for sensor validation or loop checking. Test at multiple amplitudes and frequencies. Maximum payload 800 grams.
  • 9110D - Modal Shop Portable Vibration Calibrator, similar to 9100D, plus displays sensor sensitivity and can be used to create NIST-traceable ISO 17025-compliant calibration certificates.

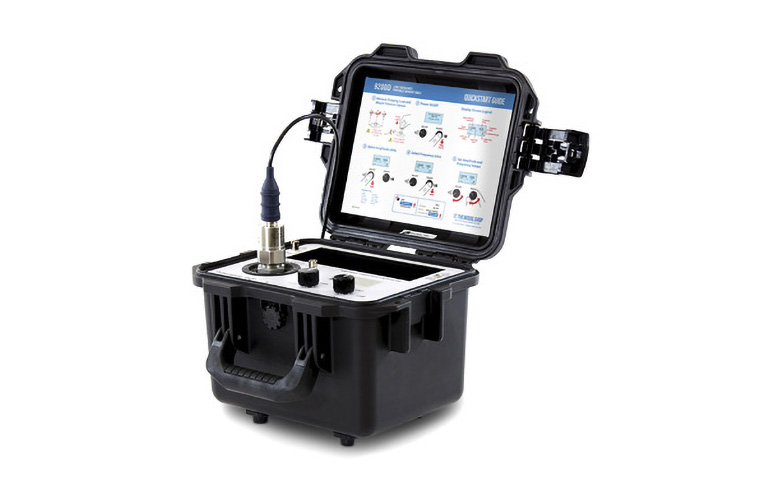

  • 9200D - Low Frequency version of 9100D. Test from 0.7 Hz to 2 kHz.
  • 9210D - Low Frequency version of 9110D. Test from 0.7 Hz to 2 kHz.

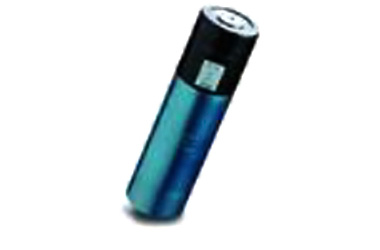

394C06

Key Specifications

Test sensor should be hand tightened without tools. Unit set to rms, but can be switched to 1g peak, see manual. Unit set to automatically shut off by default. Do not use with accelerometers with sensitivity 5V/g (5000mV/g) or higher, as clipping will occur.

(!)This unit includes adaptors as shown below. Additional adaptors are available upon request. Not sure of mounting requirements? – send a sensor list for us to verify.

Rental Includes

  • 080A109 - 1"x1"x0.25" Petro Wax
  • 073A15 - Battery pack with (4) AA batteries (installed)
  • 080A84 - 10-32 mounting base (shaker) to 5-40 (accelerometer)
  • 081A08 - 10-32 (shaker) to 1/4-28 mounting stud (accelerometer)
  • 081B05 - 10-32 to 10-32 mounting stud

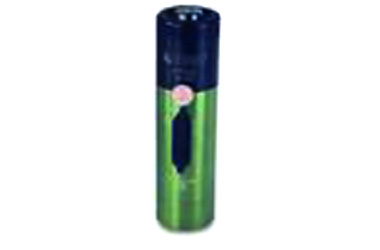

699B02

Key Specifications

Unit similar to 394C06 and obsolete 699A02 but can be used on sensors up to 250 gram mass. Unit has 1/4-28 mounting thread, and includes studs to adapt to 10-32 or 1/4-28 as detailed below. Test sensor should be hand tightened without tools. Unit set to rms, but can be switched to 1g peak, see manual. Unit set to automatically shut off by default. Do not use with accelerometers with sensitivity 5V/g (5000mV/g) or higher, as clipping will occur.

(!)This unit includes adaptors as shown below. Additional adaptors are available upon request. Not sure of mounting requirements? – send a sensor list for us to verify.

Rental Includes

  • 080A109 - 1"x1"x0.25" Petro Wax
  • 073A15 - Battery pack with (4) AA batteries (installed)
  • 080A136 - Calibration mass, used when testing sensors less than 75g
  • 081A08 - 1/4-28 mounting stud (shaker) to 10-32 (accelerometer)
  • 081A40 - 1/4-28 to 1/4-28 mounting stud

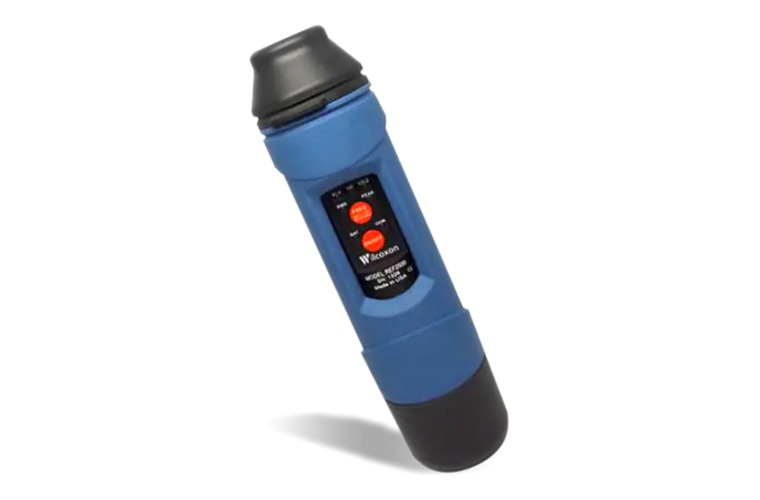

RENT REF2510R Wilcoxon Product 1

Model REF2510R Portable vibration reference source

Key Specifications

  • Handheld shaker
  • 1g acceleration at 61.4 Hz, 100.0 Hz, and 159.2Hz
  • Payload up to 250 grams
  • Peak or rms acceleration
  • 1/4-28 mounting thread
  • Full specs from manufacturer

Unit similar to 699B02 but can be used on sensors up to 250 gram mass. Unit has 1/4-28 mounting thread, and includes studs to 1/4-28 as detailed below. Test sensor should be hand tightened without tools. Unit set to rms, but can be switched to peak from panel interface. Unit set to automatically shut off by default. Multiple frequency outputs for velocity verification and for use with imperial, metric and calibration measurements. Rugged enclosure and IP54 rating for use in harsh industrial applications. Do not use with accelerometers with sensitivity 5V/g (5000mV/g) or higher, as clipping will occur.

(!)This unit includes adaptors as shown below. Additional adaptors are available upon request. Not sure of mounting requirements? – send a sensor list for us to verify.

Rental Includes

  • Carrying case with foam insert
  • Wrench and belt clip
  • 4 AA batteries
  • SF6 mounting stud
  • 1/4-28 to 1/4-28 SF6 mounting stud
  • 9155-MNT06 - Adaptor 1/4-28 Male to 10-32 Female

9100d portable shaker table product 1

9100D Portable Vibration Calibrator

Key Specifications

  • 5Hz to 10kHz frequency range with acceleration amplitudes up to 20g
  • Rugged, easily carried, and battery powered
  • Supports up to 800g sensor mass with no external support
  • LCD read out with selectable English or Metric units
  • Available 9100-PPA01 proximity probe adaptor
  • Full specs from manufacturer

Unit can display acceleration, velocity, displacement, and frequency. Can be used to calibrate velometers with velocity output. Full suite of application tutorials available.

(!)This unit includes adaptors as shown below. Additional adaptors are available upon request. Not sure of mounting requirements? – send a sensor list for us to verify.

Rental Includes

  • PD-1320-01 - Mounting wrench
  • 9100-PS01 - Power supply and plug adaptors
  • 081A08 - 10-32 to 1/4-28 mounting stud
  • 081B20 - 1/4-28 to 1/4-28 mounting stud
  • 080A118 - Mounting pad for sensor with magnetic base

9110D portable vibration calibrator product 4

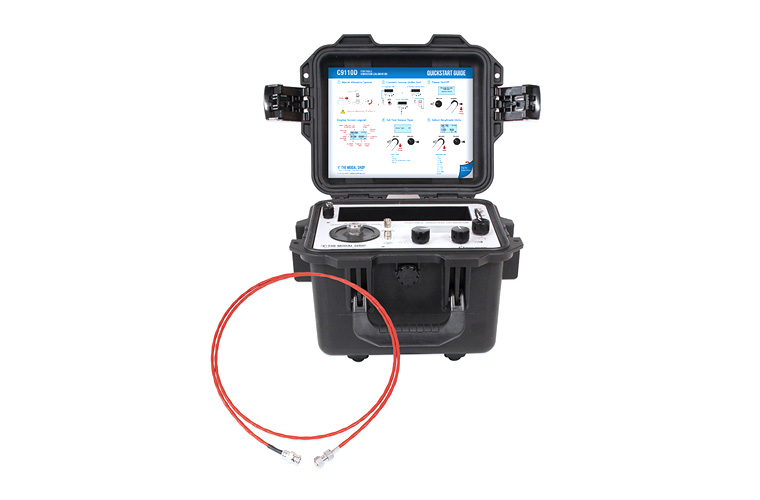

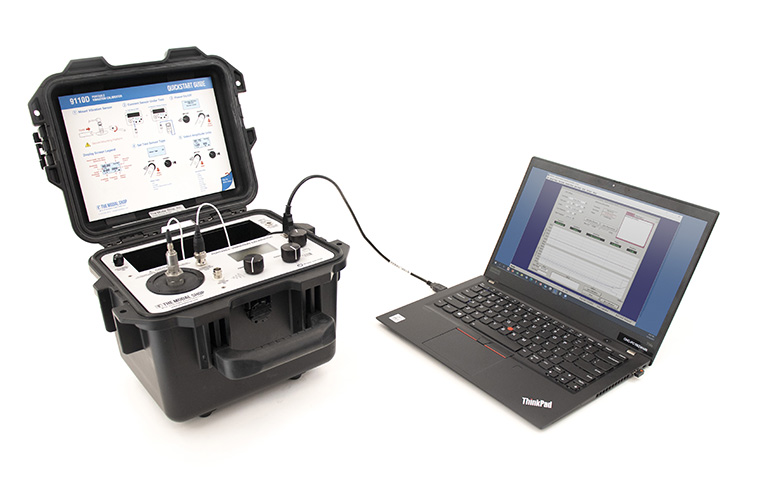

9110D Portable Vibration Calibrator

Key Specifications

  • Same base features as the 9100D
  • Built in ICP®/voltage input to display test sensor sensitivity
  • Ability to save up to 500 calibration records on unit's internal memory
  • Records can be transferred via USB flash drive to a computer to generate ISO 17025-compliant customizable calibration certificates
  • Full specs from manufacturer

Full suite of application tutorials available.

(!)This unit includes adaptors as shown below. Additional adaptors are available upon request. Not sure of mounting requirements? – send a sensor list for us to verify.

Rental Includes

  • PD-1320-01 - Mounting wrench
  • 9100-PS01 - Power supply and plug adaptors
  • 081A08 - 10-32 to 1/4-28 mounting stud
  • 081B20 - 1/4-28 to 1/4-28 mounting stud
  • 080A118 - Mounting pad for sensor with magnetic base
  • 9110-USB - USB flash drive with report generation worksheet

9100-ppa01 proximity probe calibration kit product 3

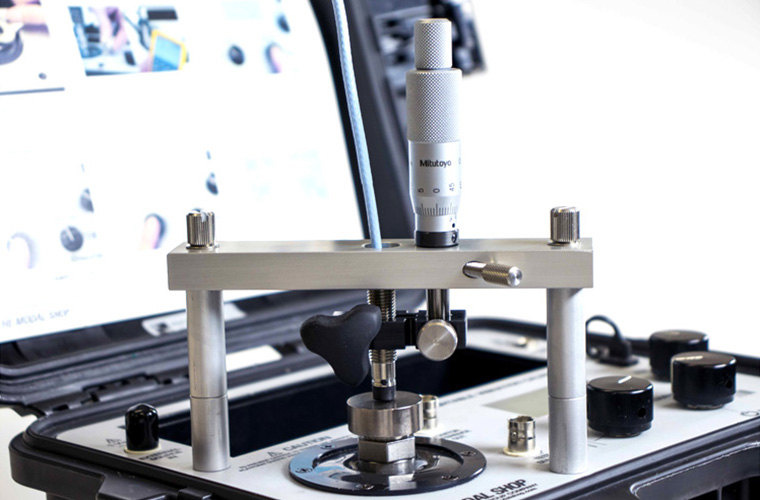

9100-PPA01 or 9100-MPPA01

Proximity probe adaptor kit for 9100D or 9110D portable vibration calibrator.  Supports probes with common case threads ranging from M6 to 3/8". Includes Mitutoyo micrometer (metric option available) and nickel plated 4140 steel target. Click here for installation information.

Rental Includes

  • Mitutoyo micrometer
  • 9100-PPA02 - 4140 steel target

cal k394b30 product 1

K394B30 Precision Air Bearing Calibration Shaker

The K394B30 kit can be rented as a DIY option in creating a short-term calibration solution. It is an easy to use air bearing shaker that virtually eliminates transverse motion compared with flexure-based calibration shakers. It uses a unique Lorentz force lifting mechanism that greatly simplifies accelerometer mounting compared with other cumbersome adjustable-band air bearing units. The signal generator and calibration certificate generation software are not included with this rental kit.

Note: Requires 50 psi compressed air supply

Rental Includes

  • 396C11 - 15 kHz version precision air bearing shaker
  • 080A200 - Beryllium insert (1/4-28 mount) with internal reference accelerometer
  • 482A21 - ICP® sensor signal conditioner
  • 2100E21 - SmartAmp AC power amplifier with integrated DC supply and air regulator
  • 003C10 - Reference accelerometer sensor cable
  • 012A03 - Signal conditioner output cable
  • 012A01 - Quantity 2, shaker cables

cal 9155 system product 1

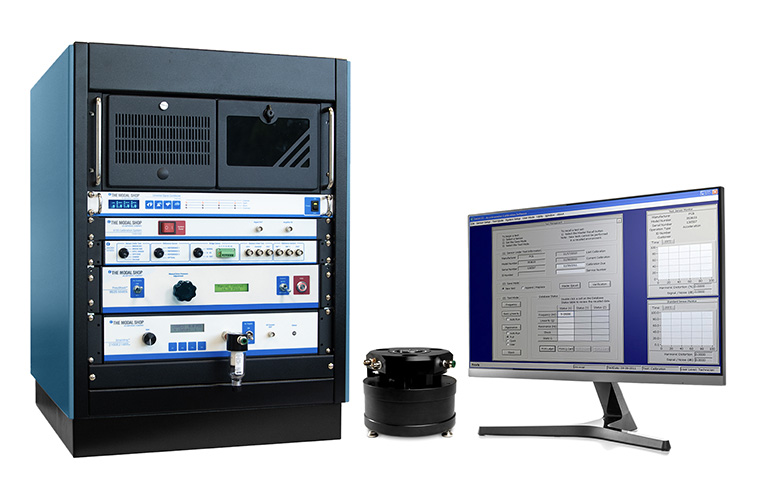

9155  Turnkey Accelerometer Calibration Workstation

The Model 9155 is a complete, turnkey accelerometer calibration workstation. It is step sine excited and based on FFT to allow NIST traceable calibrations. A complete workstation with myriad options generally offered for sale, but can be made available for rental for those with a large number of sensors and limited capital. Click here for hardware/software options and contact us for details.
