Triaxial ICP® Accelerometer Rental

Take Simultaneous Multi-Axis Measurements

Triaxial accelerometers are designed with three orthogonal sensing elements to enable simultaneous multi-axis measurements (x-, y-, and z-axis). Smaller units minimize mass loading effects and permit installation into confined areas. A unit with a tapped hole in its base may be secured with a screw passing through the object under test to aid in axis alignment, or may be stud-mounted to a separate adhesive mounting base.

These units typically feature a 4-pin electrical connector (for a single cable hook-up) or an integral 4-conductor cable. Types include High Temperature, Miniature, General Purpose, Modal Array, Shock, Seat Pad, or Filtered accelerometers. See accessories for additional mounting equipment or calibration notes for information on calibration. Contact us for detailed selection assistance, or for unique requirements not shown.

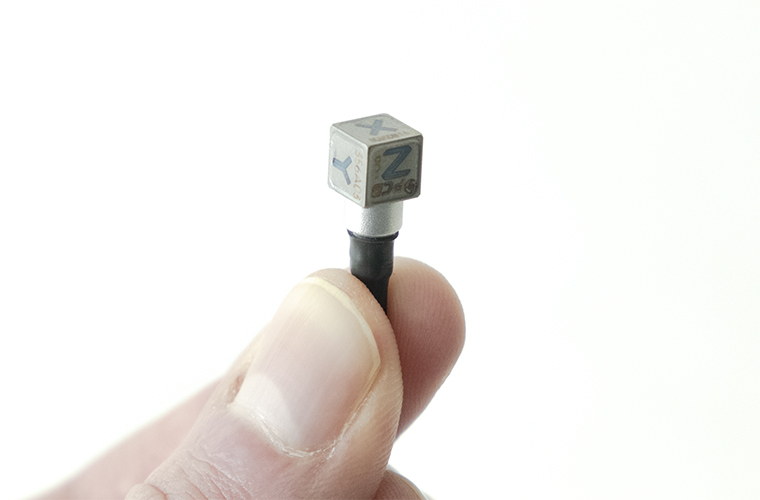

Miniature Accelerometers

Lightweight ceramic shear design, titanium cased hermetically sealed units that minimize effects of mass loading. Some units available with TEDS (Transducer Electronic Data Sheet) and high temperature options.

Model
Amplitude Range (±g pk)
Sensitivity (mV/g)
Frequency Range (Hz)
Resolution (g RMS)
Mechanical Shock Limit (lg pk)
Temperature Range (°F)
Mass (grams)
Mounting Base Included
Option without Cable
-10%-5%+5%+10%
356A0520k0.2511.26k10k0.0435k-65 to +3250.8
356B205k1-210k*-0.037k-65 to +2504
356A045k111.26k10K0.0210k-65 to +3250.8
356A011k5-28k*-0.00310k-65 to +2501
356A0350010-28k*-0.0035k-65 to +2501
356B2150010-210k*-0.00410k-65 to +2504
356A32501000.714k5k0.00035k-65 to +2505.4
356A45501000.40.77k10k0.00055k-65 to +1854.2

*Frequency ranges vary across axes, see full specifications below for all frequency ranges


356A05 Miniature Triaxial Accelerometer Rental

Key Specifications Rental Includes
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Similar to: Dytran 3133A5


356B20 Miniature Triaxial Accelerometer Rental

Key Specifications Rental Includes
  • 080A - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081A90 - 5-40 to 10-32 adaptor stud
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Note: Base model 356B20 is also available and includes a 10ft breakout cable to BNC, model 034K10. Use model 356B20/NC to omit cabling if not required, or order an appropriate length cable separately.

Similar to: B&K 4520-002, Dytran 3023A9, Endevco 65HT-1, B&K 4520-002


356A04 Miniature Triaxial Accelerometer Rental

Key Specifications Rental Includes
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Note: Base model 356A04 is also available and includes a 5ft breakout cable to BNC, model 034G05. Use model 356A04/NC to omit cabling if not required, or order an appropriate length cable separately.

Similar to: Endevco 35C-2, Dytran 3133A4


356A01 Miniature Triaxial Accelerometer Rental

Key Specifications Rental Includes
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Note: Base model 356A01 is also available and includes a 5ft breakout cable to BNC, model 034G05. Use model 356A01/NC to omit cabling if not required, or order an appropriate length cable separately.

Similar to: Endevco 35A, Dytran 3133A3


356A03 Miniature Triaxial Accelerometer Rental

Key Specifications Rental Includes
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Similar to: Dytran 3133A1


356B21 Miniature Triaxial Accelerometer Rental

Key Specifications Rental Includes
  • 080A - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081A90 - 5-40 to 10-32 adaptor stud
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Similar to: B&K 4520-001, Dytran 3023A1 & 3023A2H, Endevco 65-10 & 65HT-10, Kistler 8766A500B & H8766A500B


356A32 Miniature Triaxial Accelerometer Rental

Key Specifications Rental Includes
  • 080A - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081A90 - 5-40 to 10-32 adaptor stud
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

356A45 Miniature Triaxial Accelerometer Rental

Key Specifications
  • TEDS version available (TEDS notes)
  • 0.4"x0.75"x0.4" titanium triaxial sensor
  • ±50g range
  • 4.2 gram mass
  • adhesive mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

General Purpose Accelerometers

This range of hermetically sealed 10.5 gram titanium triaxial accelerometers is our most popular style, and covers a wide range of uses. Applications vary widely and include general vibration testing, motor and pump monitoring, design studies, and vibration control. Many units are available with optional TEDS (Transducer Electronic Datasheet) built in to simplify test setup with a TEDS capable DAQ system.

Model
Amplitude Range (±g pk)
Sensitivity (mV/g)
Frequency Range (Hz)
Resolution (g RMS)
Mechanical Shock Limit (lg pk)
Temperature Range (°F)
Mass (grams)
Mounting Base Included
Option without Cable
-10%-5%+5%+10%
354C02500100.30.52k4k0.00055k-65 to +250 15.5
356A02500100.515k6k0.00057k-65 to +25010.5
TLD356A14501000.30.55k6k0.00017k-65 to +17610.5
356A15501001.425k6.5k0.00027k-65 to +25010.5
TLD356A16501000.30.55k*6k0.00017k-65 to +2507.4
J356A43500100.40.77k10k0.00085k-65 to +2504.2

*Frequency ranges vary across axes, see full specifications below for all frequency ranges


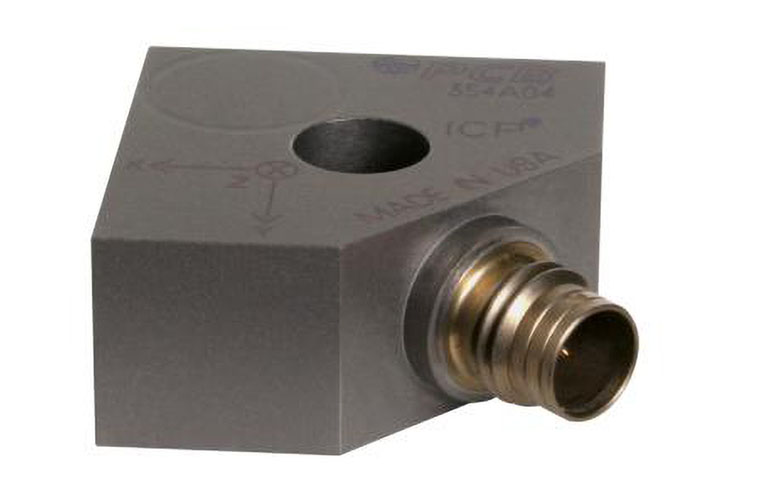

354C02 General Purpose Accelerometer Rental

Key Specifications
  • High temperature version available
  • TEDS version available (TEDS notes)
  • 0.815" hex x 0.45" height titanium triaxial sensor
  • ±500g range
  • 15.5 gram mass
  • Thru-hole mounting simplifies axis and connector orientation
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 039A23 - Allen wrench, 5/32" hex
  • 081B60 - Insulated cap screw, 10-32 thd x 5/8" long
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

356A02 Miniature Triaxial Accelerometer Rental

Key Specifications
  • High temperature, TEDS, and high temperature with TEDS versions available (TEDS notes)
  • 0.55"x0.8"x0.55" titanium cube triaxial sensor
  • ±500g range
  • 10.5 gram mass
  • 10-32 female mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 080A12 - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081B05 - 10-32 to 10-32 mounting stud with shoulder
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

TLD356A14 Miniature Triaxial Accelerometer Rental

Key Specifications
  • TEDS version available (TEDS notes)
  • 0.55"x0.8"x0.55" titanium cube triaxial sensor
  • ±50g range
  • 10.5 gram mass
  • 10-32 female mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 080A12 - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081B05 - 10-32 to 10-32 mounting stud with shoulder
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

356A15 Miniature Triaxial Accelerometer Rental

Key Specifications
  • TEDS version available (TEDS notes)
  • 0.55"x0.8"x0.55" titanium cube triaxial sensor
  • ±50g range
  • 10.5 gram mass
  • 10-32 female mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 080A12 - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081B05 - 10-32 to 10-32 mounting stud with shoulder
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Similar to: B&K 4506 & 4506B, Dytran 3093B1 & 3093B1T


TLD356A16 Miniature Triaxial Accelerometer Rental

Key Specifications
  • TEDS version available (TEDS notes)
  • 0.55"x0.8"x0.55" anodized aluminum cube triaxial sensor
  • ±50g range
  • 7.4 gram mass
  • 10-32 female mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 080A12 - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081B05 - 10-32 to 10-32 mounting stud with shoulder
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Similar to: B&K 4506 & 4506B, Dytran 3093B1 & 3093B1T


J356A43 Miniature Triaxial Accelerometer Rental

Key Specifications
  • 0.40"x0.75"x0.40" titanium cube triaxial sensor
  • ±50g range
  • 7.4 gram mass
  • Adhesive mount
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 080A12 - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081B05 - 10-32 to 10-32 mounting stud with shoulder
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Similar to: B&K 4506 & 4506B, Dytran 3093B1 & 3093B1T

Modal Array Accelerometers

Suited for traditional experimental modal analysis or operational modal analysis, with tight phase specification vital for global parameter estimation. TEDS enabled units help channel bookkeeping when used with compatible systems.

Model
Amplitude Range (±g pk)
Sensitivity (mV/g)
Frequency Range (Hz)
Resolution (g RMS)
Mechanical Shock Limit (lg pk)
Temperature Range (°F)
Mass (grams)
Mounting Base Included
Option without Cable
-10%-5%+5%+10%
TLD356B18510000.30.53k5k0.000055k-20 to +17025
TLD356M98510000.30.53k5k0.000055k-20 to +17039

TLD356B18 Modal Array Accelerometer Rental

Key Specifications
  • TEDS version available (TEDS notes)
  • 0.8"x1.03"x0.8" Aluminum cube triaxial sensor
  • ±5g range
  • 25 gram mass
  • 10-32 female mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 080A68 - Adhesive mounting base, 0.75" hex x 0.2" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish hardcoat finish
  • 081B05 - 10-32 to 10-32 mounting stud with shoulder
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Similar to: Kistler 8762A5


TLD356M98 Modal Array Accelerometer Rental

Key Specifications
  • TEDS version available (TEDS notes)
  • 0.8"x1.03"x0.8" titanium cube triaxial sensor
  • ±5g range
  • 39 gram mass
  • 10-32 female mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 080A68 - Adhesive mounting base, 0.75" hex x 0.2" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish hardcoat finish
  • 081B05 - 10-32 to 10-32 mounting stud with shoulder
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

High Temperature Accelerometers

Adjusted circuitry allows measurement of these units in temperatures to +325°F (163°C) and are used with traditional ICP power systems. Slight low frequency and broadband resolution specifications may be affected.

Model
Amplitude Range (±g pk)
Sensitivity (mV/g)
Frequency Range (Hz)
Resolution (g RMS)
Mechanical Shock Limit (lg pk)
Temperature Range (°F)
Mass (grams)
Mounting Base Included
Option without Cable
-10%-5%+5%+10%
HT356B011k5-28k*-0.00310k-65 to +3561
HT356A02500100.515k6k0.00087k-65 to +32510.5
HT356A15501001.425k6.5k0.00027k-65 to +32510.5
HT356A3350010-210k*-0.00410k-65 to +3255.3
HT356B2150010-210k*-0.00410k-65 to +3254

*Frequency ranges vary across axes, see full specifications below for all frequency ranges


HT356B01 High Temperature Accelerometer Rental

Key Specifications Rental Includes
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Similar to: Endevco 35A, Dytran 3133A3


HT356A02 High Temperature Accelerometer Rental

Key Specifications
  • TEDS version available (TEDS notes)
  • 0.55"x0.8"x0.55" titanium cube triaxial sensor
  • ±500g range
  • 10.5 gram mass
  • 10-32 female mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 080A12 - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081B05 - 10-32 to 10-32 mounting stud with shoulder
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

HT356A15 High Temperature Accelerometer Rental

Key Specifications
  • TEDS version available (TEDS notes)
  • 0.55"x0.8"x0.55" titanium cube triaxial sensor
  • ±500g range
  • 10.5 gram mass
  • 10-32 female mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 080A12 - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081B05 - 10-32 to 10-32 mounting stud with shoulder
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

HT356A33 High Temperature Accelerometer Rental

Key Specifications
  • 0.4"x0.77"x0.4" titanium cube triaxial sensor
  • ±500g range
  • 5.3 gram mass
  • 5-40 female mounting
  • 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 080A - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081A90 - 5-40 to 10-32 adaptor stud
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

HT356B21 High Temperature Accelerometer Rental

Key Specifications Rental Includes
  • 080A - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081A90 - 5-40 to 10-32 adaptor stud
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 10 Hz to upper 5% point (TMS: MCS-A001T or PCB: ACS-1T). See notes on calibration for additional information

Similar to: B&K 4520-001, Dytran 3023A1 & 3023A2H, Endevco 65-10 & 65HT-10, Kistler 8766A500B & H8766A500B

Shock Accelerometers

Series 350 ICP® mechanically isolated, electrically filtered pyroshock accelerometers are designed to withstand and measure extreme high-level, short-duration transient accelerations. These units are ideal for measuring harsh pyroshock events such as found in metal-to-metal tests, impacts and armor testing, explosive studies, pile driver monitoring, and simulated pyroshock events. High-g shock calibration is included with rental of 350 Series units.

Model
Amplitude Range (±g pk)
Sensitivity (mV/g)
Frequency Range (Hz)
Resolution (g RMS)
Mechanical Shock Limit (lg pk)
Temperature Range (°F)
Mass (grams)
Mounting Base Included
Option without Cable
-10%-5%+5%+10%
350B50*10k0.51.5310k20k0.0325k-65 to +2508
350A43**10k0.5-0.410k-0.0450k0 to +15062.5
350B43**10k0.5-0.410k-0.0450k0 to +15062.5

*Frequency ranges specified at ±1 and ±3 dB for 350B50 sensor
**Frequency range specified at ±1 dB for 350A43 and 350B43 sensors. See below for full specifications.


350B50 Shock Accelerometer Rental

Key Specifications Rental Includes
  • 080A197 - Through hole mounting adaptor
  • 081A112 - 6-32 thread x 1/2" long insulated cap screw
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration for high G shock using Hopkinson bar (PCB: ACS-14T) and frequency response fotm 100 Hz to ±1 dB point (PCB: ACS-22T). See notes on calibration for additional information

350A43 Shock Accelerometer Rental

Key Specifications Rental Includes
  • 100-8994-40 - Coupling grease
  • 100-8360-70 - STD mounting screw (1/4-28 x 1.5" long) (qty 2)
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration for high G shock using Hopkinson bar (PCB: ACS-14T) and frequency response fotm 100 Hz to ±1 dB point (PCB: ACS-22T). See notes on calibration for additional information

350B43 Shock Accelerometer Rental

Key Specifications
  • 1.02"x1.02"x1.02" titanium triaxial sensor
  • ±10000g range
  • 27 gram mass
  • Through hole mounting
  • 5-ft integral cable terminating in 1/4-28 4-pin jack used with 010G, 034G, or 078G series cable
  • Full specs from manufacturer
Rental Includes
  • 100-16040-40 - Metric mounting screws (M6x1.0 x 22mm long
  • 100-8994-40 - Coupling grease
  • 100-8360-70 - STD mounting screw (1/4-28 x 1.5" long) (qty 2)
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration for high G shock using Hopkinson bar (PCB: ACS-14T) and frequency response fotm 100 Hz to ±1 dB point (PCB: ACS-22T). See notes on calibration for additional information

Human Vibration Accelerometers

Used in whole body vibration and vehicle operation tests.

Model
Amplitude Range (±g pk)
Sensitivity (mV/g)
Frequency Range (Hz)
Resolution (g RMS)
Mechanical Shock Limit (lg pk)
Temperature Range (°F)
Mass (grams)
Mounting Base Included
Option without Cable
-10%-5%+5%+10%
356B4110100-0.51k-0.00022k+14 to +122272

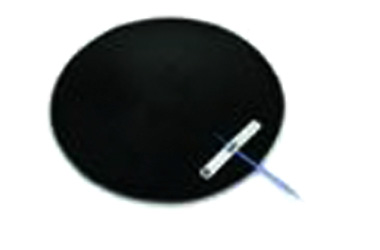

356B41 Human Vibration Accelerometer Rental

Key Specifications Rental Includes
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 5 Hz to 100 Hz (TMS: 5 Hz to 1000 Hz, MCS-A001 or PCB: 0.5 Hz to 100 Hz, ACS-17). See notes on calibration for additional information

Note: Used in whole body vibration and vehicle operation tests; meets ISO 10326-1 standard.

Similar to: B&K 4515B, Dytran 5313A


Notes on Calibration

Calibration data is provided electronically (on CD or USB memory stick) or as printed copies, depending on quantity rented and end-user preference.

The Modal Shop has internal calibration intervals set for most test products at 1 year. ANSI/ISO/IEC 17025:2000 makes clear that it is the responsibility of the end-user organization (in this case, the renter) to determine the appropriate calibration interval under the requirements of its own quality system. Per this, calibration certificates of rented equipment have "calibrated on" dates, but blank "calibration due" dates. Rentals ship with a customer specific expected return date in mind – if equipment is expected out for 5 months, the last calibration date will be within the past 7 months. Calibration to additional standards (e.g. Z540 or specific FAA requirements) are possible, but there may be an additional charge.

The Modal Shop's Scope of Accreditation can be found here. An example of a calibration certificate can be found here. Please contact us with questions or if a different calibration will be needed for your rental sensors.


Notes on TEDS (Transducer Electronic Data Sheet)

The TEDS option is available on several rental transducers. TEDS stands for Transducer Electronic Data Sheet and provides memory within a sensor with manufacturer name, sensor type, model number, serial number and calibration data. It is an approved IEEE standard (1451.4), and many data acquisition manufacturers include the ability to read TEDS sensors. Not sure if your DAQ has TEDS capability? No problem; TEDS sensors can be used alongside non-TEDS sensors with no issues; the TEDS memory is bypassed. Want more information? See our TEDS FAQ.
