Single Axis ICP Accelerometer Rental

Mini, General Purpose, Shock, and High Temp

To decide what single direction, single axis units are needed, first choose between the Miniature, General Purpose, Modal Array, High Temperature, or Shock accelerometer sections. Generally, start the selection within each group with the maximum g amplitude range in mind. Next, verify other factors including temperature, range, mounting type, and cable configuration. For multi-axis testing, consider a triaxial unit or use a triaxial mounting adaptor (see accessories). See calibration notes for information on calibration. Contact us for detailed selection assistance, or for unique requirements not shown.

For high temperature sensors please see the high temperature accelerometer page.

Miniature Accelerometers

Lightweight units are ideal for high frequency testing with a small size and low mass. Applications include environmental testing, component qualification, structural testing and operational behavior of lightweight or thin objects, and fatigue testing.

! When removing teardrop style sensors, it is essential to use the removal tool supplied along with an appropriate debonding agent.

Model
Amplitude Range (±g pk)
Sensitivity (mV/g)
Frequency Range (Hz)
Resolution (g RMS)
Mechanical Shock Limit (lg pk)
Temperature Range (°F)
Mass (grams)
Mounting Base Included
Option without Cable
-3 dB-10%-5%+5%+10%+3 dB
352A252k2.50.30.7110k13k20k0.0110k-65 to +2500.6
TLD
352A57
2k2.5-0.30.510k15k-0.0015k-65 to +2501.33
352C231k50.71.5210k15k25k0.00310k-65 to +250 0.2
352A21500100.30.7110k13k20k0.00410k-65 to +2500.6
352C22500100.30.7110k13k20k 0.001510k-65 to +2500.5
352A24501000.40.818k10k12k0.0025k-65 to +2500.8

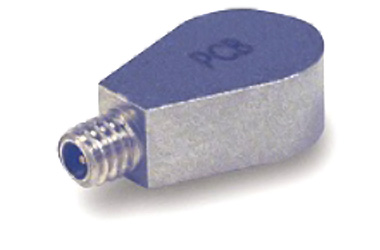

352A25 Miniature Accelerometer Rental

Key Specifications
  • 0.45"x0.25"x0.14" Titanium sensor
  • ±2000g range
  • 0.6 gram mass
  • Adhesive mounting
  • 3-56 coaxial jack electrical connector. Included 10-ft integral cable terminating in 10-32 plug. Use 070A02 scope adaptor to terminate in BNC, or use 070A05 cable connector to 002C or 003C series cable.
  • /NC (No Cable) option available – use your own or choose custom length and configuration here.
  • Full specs from manufacturer
Rental Includes
  • 030A10 - 10-ft detachable cable. 3-56 plug to 10-32 plug
  • 039A27 - Removal tool
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: B&K 4516-001, Endevco 25A, 25B, 7625A & 2250A-10


TLD352A57 Miniature Accelerometer Rental

Key Specifications
  • Used in satellite component ground vibration testing for sine, random and shaker shock
  • Low outgassing miniature accelerometer with TEDS
  • Hermetically sealed 0.57"x0.30"x0.26" titanium sensor
  • ±2000g range
  • 1.33 gram mass
  • Adhesive mounting
  • 5-44 coaxial jack electrical connector
  • Full specs from manufacturer
Rental Includes
  • 039A26 - Removal tool
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

352C23 Miniature Accelerometer Rental

Key Specifications
  • 0.34"x0.16"x0.11" anodized aluminum sensor
  • ±1000g range
  • 0.2 gram mass
  • Adhesive mounting
  • 3-56 coaxial jack electrical connector. Included 10-ft integral cable terminating in 10-32 plug. Use 070A02 scope adaptor to terminate in BNC, or use 070A05 cable connector to 002C or 003C series cable.
  • /NC (No Cable) option available – use your own or choose custom length and configuration here.
  • Full specs from manufacturer
Rental Includes
  • 030A10 - 10-ft detachable cable. 3-56 plug to 10-32 plug
  • 039A26 - Removal tool
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: B&K 4516-001, Endevco 25A & 25B & 7625A


352A21 Miniature Accelerometer Rental

Key Specifications
  • 0.45"x0.25"x0.14" Titanium sensor
  • ±500g range
  • 0.6 gram mass
  • Adhesive mounting
  • 3-56 coaxial jack electrical connector. Included 10-ft integral cable terminating in 10-32 plug. Use 070A02 scope adaptor to terminate in BNC, or use 070A05 cable connector to 002C or 003C series cable.
  • /NC (No Cable) option available – use your own or choose custom length and configuration here.
  • Full specs from manufacturer
Rental Includes
  • 030A10 - 10-ft detachable cable. 3-56 plug to 10-32 plug
  • 039A27 - Removal tool
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: B&K 4516-001, Endevco 25A & 25B & 7625A


352C22 Miniature Accelerometer Rental

Key Specifications
  • 0.45"x0.25"x0.14" anodized aluminum sensor
  • ±500g range
  • 0.5 gram mass
  • adhesive mounting
  • 3-56 coaxial jack electrical connector. Included 10-ft integral cable terminating in 10-32 plug. Use 070A02 scope adaptor to terminate in BNC, or use 070A05 cable connector to 002C or 003C series cable.
  • /NC (No Cable) option available – use your own or choose custom length and configuration here.
  • Full specs from manufacturer
Rental Includes
  • 030A10 - 10-ft detachable cable. 3-56 plug to 10-32 plug
  • 039A26 - Removal tool
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: B&K 4517, Dytran 3224A1, Endevco 27A11 & 27AM1-10 & 2250A & 2222C (charge type), Kistler 8778A500


352A24 Miniature Accelerometer Rental

Key Specifications
  • 0.48"x0.28"x0.19" anodized aluminum sensor
  • ±50g range
  • 0.8 gram mass
  • adhesive mounting
  • 3-56 coaxial jack electrical connector. Included 10-ft integral cable terminating in 10-32 plug. Use 070A02 scope adaptor to terminate in BNC, or use 070A05 cable connector to 002C or 003C series cable.
  • /NC (No Cable) option available – use your own or choose custom length and configuration here.
  • Full specs from manufacturer
Rental Includes
  • 030A10 - 10-ft detachable cable. 3-56 plug to 10-32 plug
  • 039A26 - Removal tool
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: Dytran 3225M24, Endevco 27A12 & 27AM1-100 & 2222D (charge type)

General Purpose Accelerometers

These units cover a wide range of tests ranging from vibration control to machine testing, and product qualification. Sensors detailed measure either ±50g or ±500g ranges, but piezoelectric accelerometers often measure an extremely high dynamic range and are perfectly suited for measurements of quite low vibration levels.

Model
Amplitude Range (±g pk)
Sensitivity (mV/g)
Frequency Range (Hz)
Resolution (g RMS)
Mechanical Shock Limit (lg pk)
Temperature Range (°F)
Mass (grams)
Mounting Base Included
Option without Cable
-3 dB-10%-5%+5%+10%+3 dB
352A60500105----60k0.00055k-65 to +2506
353B15500100.350.7110k18k30k0.00510k-65 to +2502
353B17500100.350.7110k17k30k0.00510k-65 to +2501.7
353B18500100.350.7110k18k30k0.00510k-65 to +2501.8
353B03500100.350.717k11k20k0.00310k-65 to +25010.5
353B04500100.350.717k11k20k0.00310k-65 to +25010.5
TLD
352C03
50010-0.30.510k15k-0.00055k-65 to +2505.8
TLD
352C33
50100-0.30.510k15k-0.000155k-65 to +2005.8
352C65501000.20.30.510k12k20k0.000165k-65 to +2002
352C68501000.20.30.510k12k20k0.000165k-65 to +2002
352B51000-1210k15k-0.000081k-65 to +20025
353B33501000.350.714k6.5k12k0.000510k-65 to +25027
351B41151000.350.712k3.5k5k0.00051k-320 to +25040

352A60 General Purpose Accelerometer Rental

Key Specifications
  • 0.375" hex stainless steel sensor
  • ±500g range
  • 6 gram mass
  • 10-32 integral stud mounting
  • 5-44 coaxial jack electrical connector used with 003P or 018C cable series
  • Full specs from manufacturer
Rental Includes
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 5 Hz to 10 kHz. Data to upper 3 dB point included using resonance sweep or gravimetric method; high frequency calibration is traceable but not A2LA accredited.

353B15 General Purpose Accelerometer Rental

Key Specifications
  • 0.31" hex titanium sensor
  • ±500g range
  • 2 gram mass
  • 5-40 integral stud mounting
  • 5-44 coaxial jack electrical connector used with 003P or 018C cable series
  • Full specs from manufacturer
Rental Includes
  • 080A15 - Adhesive mounting base, 0.312" hex x 0.125" thk, 5-40 tapped hole, aluminum w/insulating hardcoat finish
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: B&K 4519, Dytran 3035B1, Endevco 256-10, Kistler 8720A500


353B17 General Purpose Accelerometer Rental

Key Specifications
  • 0.28" hex titanium sensor
  • ±500g range
  • 1.7 gram mass
  • 5-40 integral stud mounting
  • 10-ft integral cable terminating in 10-32 plug. Use 070A02 scope adaptor to terminate in BNC, or use 070A05 cable connector to 002C or 003C series cable.
  • Full specs from manufacturer
Rental Includes
  • 080A15 - Adhesive mounting base, 0.312" hex x 0.125" thk, 5-40 tapped hole, aluminum w/insulating hardcoat finish
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

353B18 General Purpose Accelerometer Rental

Key Specifications
  • 0.28" hex titanium sensor
  • ±500g range
  • 1.8 gram mass
  • 5-40 integral stud mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C cable series
  • Full specs from manufacturer
Rental Includes
  • 080A15 - Adhesive mounting base, 0.312" hex x 0.125" thk, 5-40 tapped hole, aluminum w/insulating hardcoat finish
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: B&K 4518, Dytran 3145A1, Kistler 8730A500


353B03 General Purpose Accelerometer Rental

Key Specifications
  • 0.5" hex titanium sensor
  • ±500g range
  • 10.5 gram mass
  • 10-32 female mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C cable series
  • Full specs from manufacturer
Rental Includes
  • 080A - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081B05 - 10-32 to 10-32 adaptor stud
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: Dytran 3056B1, Kistler 8704B500


353B04 General Purpose Accelerometer Rental

Key Specifications
  • 0.5" hex titanium sensor
  • ±500g range
  • 10.5 gram mass
  • 10-32 female mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C cable series
  • Full specs from manufacturer
Rental Includes
  • 080A - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081B05 - 10-32 to 10-32 adaptor stud
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: Dytran 3056B1, Kistler 8704B500


TLD352C03 General Purpose Accelerometer Rental

Key Specifications
  • 7/16" hex titanium sensor
  • ±500g range
  • 5.8 gram mass
  • 10-32 integral stud mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C cable series
  • Full specs from manufacturer
Rental Includes
  • 080A15 - Adhesive mounting base
  • 081B05 - Mounting Stud (10-32 to 10-32)
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

TLD352C33 General Purpose Accelerometer Rental

Key Specifications
  • 0.44" hex titanium sensor
  • ±50g range
  • 5.8 gram mass
  • 10-32 female
  • 10-32 coaxial jack electrical connector used with 002C or 003C cable series
  • Full specs from manufacturer
Rental Includes
  • 080A - Adhesive mounting base
  • 081B05 - Mounting Stud (10-32 to 10-32)
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

352C65 General Purpose Accelerometer Rental

Key Specifications
  • 0.312" hex titanium sensor
  • ±50g range
  • 2 gram mass
  • 5-40 integral stud mounting
  • 5-44 coaxial jack electrical connector used with 003P or 018C cable series
  • Full specs from manufacturer
Rental Includes
  • 080A15 - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: B&K 4519-001, Dytran 3035B, Endevco 256-100, Kistler 8776A50


352C68 General Purpose Accelerometer Rental

Key Specifications
  • 0.28" hex titanium sensor
  • ±50g range
  • 2 gram mass
  • 5-40 integral stud mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C cable series
  • Full specs from manufacturer
Rental Includes
  • 080A15 - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: B&K 4518-001, Dytran 3145A, Kistler 8774A50


352B General Purpose Accelerometer Rental

Key Specifications
  • 0.75" hex titanium sensor
  • ±5g range
  • 25 gram mass
  • 10-32 female mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C cable series
  • Full specs from manufacturer
Rental Includes
  • 080A15 - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

353B33 General Purpose Accelerometer Rental

Key Specifications
  • 0.75" hex titanium sensor
  • ±50g range
  • 27 gram mass
  • 10-32 female mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C cable series
  • Full specs from manufacturer
Rental Includes
  • 080A15 - Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: B&K 4518-001, Dytran 3145A, Kistler 8774A50


351B41 General Purpose Accelerometer Rental

Key Specifications
  • Cryogenic ICP sensor usable to -320°F (-196°C)
  • 0.75" hex titanium sensor
  • ±15g range
  • 40 gram mass
  • 10-32 female mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C cable series
  • Full specs from manufacturer
Rental Includes
  • 081B05 - 10-32 to 10-32 adaptor stud
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Modal Array Accelerometers

Excellent phase characteristics and lightweight construction, ideal for structural vibration, multi-channel modal analysis, analytical model correlation, and force-response testing. Many units have TEDS functionality as an option, see information below. A wide range of structural test hardware is also available, including shakers and impact hammers, as well as large-channel cable management solutions.

Model
Amplitude Range (±g pk)
Sensitivity (mV/g)
Frequency Range (Hz)
Resolution (g RMS)
Mechanical Shock Limit (lg pk)
Temperature Range (°F)
Mass (grams)
Mounting Base Included
Option without Cable
-3 dB-10%-5%+5%+10%+3 dB
T333B3250100--0.53k--0.000155k-0 to +1504
333B50100--21k--0.000073.5k-0 to +1505.6
TLD
333B30
5k100--0.53k--0.000155k-0 to +1504
TLD
333B50
51000--0.53k--0.000054k0 to +1507.5

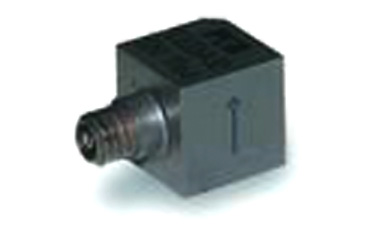

T333B32 Modal Array Accelerometer Rental

Key Specifications
  • TEDS version (TEDS notes)
  • 0.4"x0.63"x0.4" titanium cube sensor
  • ±50g range
  • 4 gram mass
  • adhesive mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C cable series
  • Full specs from manufacturer
Rental Includes
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: B&K 4507-002, Dytran 3097A2, Kistler 8640A50


333B Modal Array Accelerometer Rental

Key Specifications Rental Includes
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

TLD333B30 Modal Array Accelerometer Rental

Key Specifications
  • 0.40" titanium cube sensor
  • ±5000g range
  • 4.0 gram mass
  • 5-40 female mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C cable series
  • Full specs from manufacturer
Rental Includes
  • 080A25 - Adhesive mounting base, 0.438" hex, 5-40 tapped hole, aluminum hardcoat
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: Kistler 8640A5


TLD333B50 Modal Array Accelerometer Rental

Key Specifications
  • 0.45" titanium cube sensor
  • ±5g range
  • 7.5 gram mass
  • 5-40 female mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C cable series
  • Full specs from manufacturer
Rental Includes
  • 080A25 - Adhesive mounting base, 0.438" hex, 5-40 tapped hole, aluminum hardcoat
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: Kistler 8640A5

High Temperature Accelerometers

Adjusted circuitry allows measurement of these units in temperatures to +325°F (163°C) and are used with traditional ICP power systems. Slight low frequency and broadband resolution specifications may be affected.

Model
Amplitude Range (±g pk)
Sensitivity (mV/g)
Frequency Range (Hz)
Resolution (g RMS)
Mechanical Shock Limit (lg pk)
Temperature Range (°F)
Mass (grams)
Mounting Base Included
Option without Cable
-3 dB-10%-5%+5%+10%+3 dB
HT352A21500100.30.7110k13k20k0.00410k-65 to +3250.6

HT352A21 High Temperature Accelerometer Rental

Key Specifications
  • High temperature version of 352A21, temperature range -65 to +325 °F
  • 0.45"x0.25"x0.14" Titanium sensor
  • ±500g range
  • 0.6 gram mass
  • Adhesive mounting
  • 3-56 coaxial jack electrical connector. Included 10-ft integral cable terminating in 10-32 plug. Use 070A02 scope adaptor to terminate in BNC, or use 070A05 cable connector to 002C or 003C series cable.
  • /NC (No Cable) option available – use your own or choose custom length and configuration here.
  • full specs
Rental Includes
  • 030A10 - 10-ft detachable cable. 3-56 plug to 10-32 plug
  • 039A27 - Removal tool
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: B&K 4516-001, Endevco 25A & 25B & 7625A

Shock Accelerometers

Designed to withstand and measure extreme high-level, short-duration transient accelerations, units also feature internal filtering for resonance suppression. Applications include metal-to-metal tests, impacts and armor testing, explosive studies, pile driver monitoring, and simulated pyroshock events. High-g shock calibration is included with rental of 350 Series units.

Model
Amplitude Range (±g pk)
Sensitivity (mV/g)
Frequency Range (Hz)
Resolution (g RMS)
Mechanical Shock Limit (lg pk)
Temperature Range (°F)
Mass (grams)
Mounting Base Included
Option without Cable
-3 dB-10%-5%+5%+10%+3 dB
350B01*100k0.052----25k0.5150k-65 to +2005.5
350D02*50k0.124--10k25k0.5150k0 to +1504.5
350M90*25k0.124--10k25k0.5150k0 to +1504.5
350C03*10k0.50.20.4--10k25k0.0450k0 to +1505.4
350C04*5k10.20.4--10k25k0.0250k0 to +1505.4
352B705k10.4-0.79k-20k0.02510k-65 to +2504.3

*350 series sensors frequency ranges specified at ±3 dB and ±1 dB range


350B01 Shock Accelerometer Rental

Key Specifications
  • 0.375" hex titanium sensor
  • ±100000g range
  • 5.5 gram mass
  • 1/4-28 integral stud mounting
  • 10-ft integral cable terminating in 10-32 plug. Use 070A02 scope adaptor to terminate in BNC, or use 070A05 cable connector to 002C or 003C series cable.
  • Full specs from manufacturer
Rental Includes
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration; includes 10 g frequency response to upper 1 dB point (TMS: MCS-A001 or PCB ACS-22) and high g shock (TMS: MCS-31 or PCB: ACS-14). See notes on calibration for additional information

Similar to: B&K 8339-002, Dytran 3200B, Kistler 8743A100


350D02 Shock Accelerometer Rental

Key Specifications
  • 0.375" hex titanium sensor
  • ±50000g range
  • 4.5 gram mass
  • 1/4-28 integral stud mounting
  • 10-ft integral cable terminating in 10-32 plug. Use 070A02 scope adaptor to terminate in BNC, or use 070A05 cable connector to 002C or 003C series cable.
  • Full specs from manufacturer
Rental Includes
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration; includes 10 g frequency response to upper 1 dB point (TMS: MCS-A001 or PCB ACS-22) and high g shock (TMS: MCS-31 or PCB: ACS-14). See notes on calibration for additional information

Similar to: B&K 8339-001, Dytran 3200B2, Endevco 2255B & 7255A, Kistler 8743A50 & 8742A50


350M90 Shock Accelerometer Rental

Key Specifications
  • 0.375" hex titanium sensor
  • ±25000g range
  • 4.5 gram mass
  • 1/4-28 integral stud mounting
  • 10-ft integral cable terminating in 10-32 plug. Use 070A02 scope adaptor to terminate in BNC, or use 070A05 cable connector to 002C or 003C series cable.
  • Full specs from manufacturer
Rental Includes
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration; includes 10 g frequency response to upper 1 dB point (TMS: MCS-A001 or PCB ACS-22) and high g shock (TMS: MCS-31 or PCB: ACS-14). See notes on calibration for additional information

Similar to: B&K 8339-001, Dytran 3200B2, Endevco 2255B & 7255A, Kistler 8743A50 & 8742A50


350C03 Shock Accelerometer Rental

Key Specifications
  • 0.375" hex titanium sensor
  • ±10000g range
  • 5.4 gram mass
  • 1/4-28 integral stud mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C series cables
  • Full specs from manufacturer
Rental Includes
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration; includes 10 g frequency response to upper 1 dB point (TMS: MCS-A001 or PCB ACS-22) and high g shock (TMS: MCS-31 or PCB: ACS-14). See notes on calibration for additional information

Similar to: Dytran 3200B5, Endevco 2255B-1 & 7255A-1, Kistler 8743A5 & 8742A5


350C04 Shock Accelerometer Rental

Key Specifications
  • 0.375" hex titanium sensor
  • ±5000g range
  • 5.4 gram mass
  • 1/4-28 integral stud mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C series cables
  • Full specs from manufacturer
Rental Includes
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration; includes 10 g frequency response to upper 1 dB point (TMS: MCS-A001 or PCB ACS-22) and high g shock (TMS: MCS-31 or PCB: ACS-14). See notes on calibration for additional information

Similar to: Dytran 3200B5, Endevco 2255B-1 & 7255A-1, Kistler 8743A5 & 8742A5


352B70 Shock Accelerometer Rental

Key Specifications
  • 0.375" hex titanium sensor
  • ±5000g range
  • 4.5 gram mass
  • 10-32 female mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C series cable
  • Full specs from manufacturer
Rental Includes
  • 080A04 - Adhesive mounting base, 0.37" hex x 0.2" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
  • 081B05 - 10-32 to 10-32 adaptor stud
  • Calibration - NIST traceable and ISO 17025/A2LA accredited calibration; includes 10 g frequency response to upper 1 dB point (TMS: MCS-A001 or PCB ACS-22) and high g shock (TMS: MCS-31 or PCB: ACS-14). See notes on calibration for additional information

Similar to: Dytran 3200B5T, Kistler 8704B5000


Notes on Calibration

Calibration data is provided electronically (on CD or USB memory stick) or as printed copies, depending on quantity rented and end-user preference.

The Modal Shop has internal calibration intervals set for most test products at 1 year. ANSI/ISO/IEC 17025:2000 makes clear that it is the responsibility of the end-user organization (in this case, the renter) to determine the appropriate calibration interval under the requirements of its own quality system. Per this, calibration certificates of rented equipment have "calibrated on" dates, but blank "calibration due" dates. Rentals ship with a customer specific expected return date in mind – if equipment is expected out for 5 months, the last calibration date will be within the past 7 months. Calibration to additional standards (e.g. Z540 or specific FAA requirements) are possible, but there may be an additional charge.

The Modal Shop's Scope of Accreditation can be found here. An example of a calibration certificate can be found here. Please contact us with questions or if a different calibration will be needed for your rental sensors.


Notes on TEDS (Transducer Electronic Data Sheet)

The TEDS option is available on several rental transducers. TEDS stands for Transducer Electronic Data Sheet and provides memory within a sensor with manufacturer name, sensor type, model number, serial number and calibration data. It is an approved IEEE standard (1451.4), and many data acquisition manufacturers include the ability to read TEDS sensors. Not sure if your DAQ has TEDS capability? No problem; TEDS sensors can be used alongside non-TEDS sensors with no issues; the TEDS memory is bypassed. Want more information? See our TEDS FAQ.
