Select a cable that mates the selected sensor to the signal conditioning or matching hardware. See related accelerometer pages to determine what cable connection mates with each sensor.

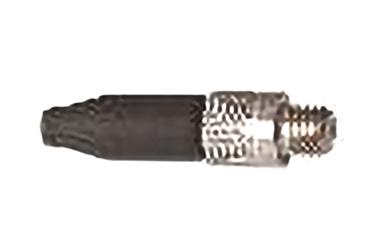

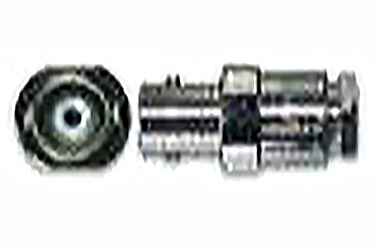

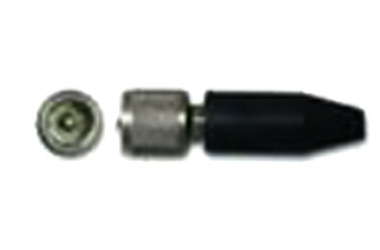

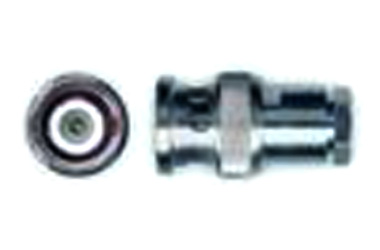

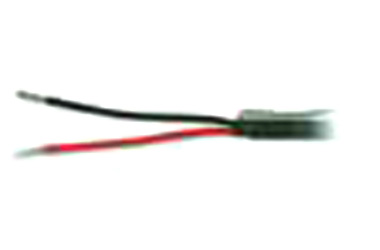

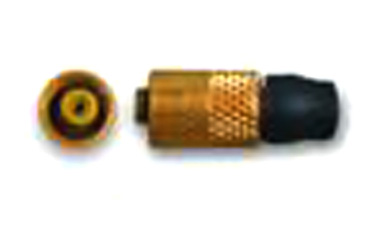

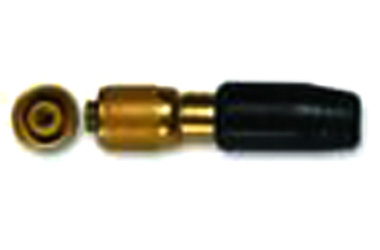

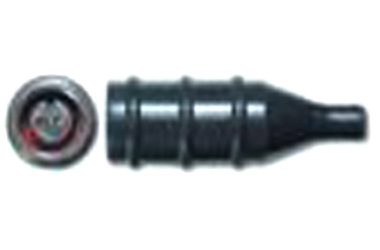

| Coaxial Cables for Uniaxial Sensors | ||||
|---|---|---|---|---|
| Series | Description | Temp Range °F | Capacitance | Diameter |
| 002 | White general purpose PTFE | -130 to +400 | 29pF/ft | 0.075in |
| 003 | Blue low noise PTFE | -320 to +500 | 30pF/ft | 0.079in |
| 012 | Black RG58/U | -40 to +176 | 29pF/ft | 0.193in |
| 018 | Miniature, lightweight, black coaxial | -22 to +221 | 55pF/ft | 0.054in |
| 030 | Miniature, low-noise, blue coaxial PTFE | -130 to +500 | 30pF/ft | 0.042in |
| Uniaxial Connector Styles | ||||||
|---|---|---|---|---|---|---|
10-32 Plug  | BNC Plug  | 10-32 Jack  | BNC Jack  | |||
Pigtail Plug  | 002ACXXXAD 002AC010AD [10ft] 002AC025AD [25ft] | |||||
3-56 Plug  | 030A Series 030A10 [10ft] | 030C Series 030C05 [5ft] 030C10 [10ft] 030C20 [20ft] 030C30 [30ft] 030C50 [50ft] | ||||
5-44 Plug  | 003G Series 003G03 [3ft] 003G10 [10ft] | 003P Series 003P30 [30ft] 018C Series 018C05 [5ft] 018C20 [20ft] | 003AGXXXAC 003AG100AC [100ft] | |||
10-32 Plug | 002A Series 002A10 [10ft] 003A Series 003A03 [3ft] 003A10 [10ft] 003A30 [30ft] | 002C Series 002C30 [30ft] 002C50 [50ft] | 003C Series 003C03 [3ft] 003C10 [10ft] 003C20 [20ft] 003C30 [30ft] 003C50 [50ft] 003EB100AC [100ft] | 002B Series 002B01 [1ft] 002B03 [3ft] | ||
BNC Plug | 002T Series 002T03 [3ft] 002T05 [5ft] 002T10 [10ft] 002T20 [20ft] 002T30 [30ft] 003D Series 003D03 [3ft] 003D10 [10ft] 003D20 [20ft] | 012A Series 012A03 [3ft] 012A06 [6ft] 012A10 [10ft] 012A25 [25ft] 012A50 [50ft] 012A100 [100ft] | 003PHXXXAC 003PH100AC [100ft] | |||
MIL-C-5015 Jack  | 012E Series 012E10 [10ft] 012E20 [20ft] 012E50 [50ft] | |||||
5-44 coaxial plug to BNC plug, Low-noise coaxial cable, blue TFE jacket, 100-ft
BNC jack to SMB plug (female contact), General purpose coaxial cable, white FEP jacket, 1-ft
BNC jack to SMB plug (female contact), General purpose coaxial cable, white FEP jacket, 7-ft
SMB female plug to BNC plug, Low-noise coaxial cable, blue TFE jacket, 10-ft

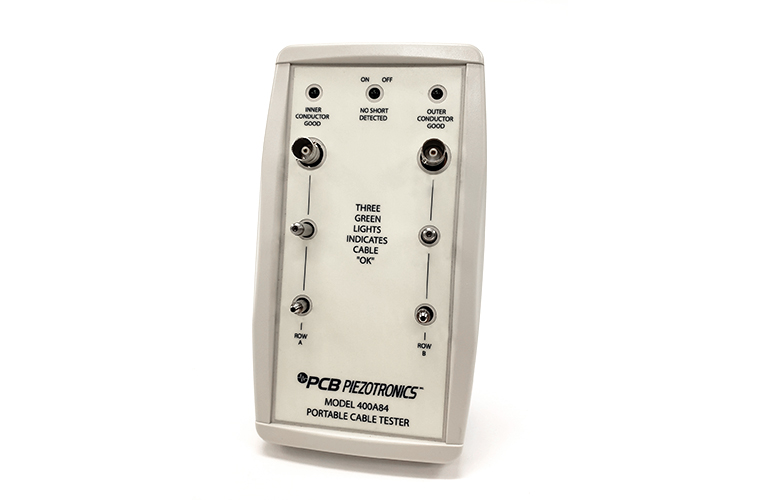

Test any 2-conductor cable for faults or opens, and identify issues to inner or outer conductor or shorts. Includes BNC, 10-32 and 5-44 connectors for each cable end; other adaptors can be used.
