Vibration Shaker Systems

Shaker System Configurations and Accessories

The Modal Shop offers a full line of individual modal shakers and vibration shakers. Kits are also available and include both shaker and amplifier required. Modal shakers offer a through-hole armature to simplify your test setup. Dual purpose vibration test shakers come equipped with a platform for vibration testing and a through-hole armature for modal analysis applications.

Click the shaker systems below to learn more about each kit configuration. Written descriptions of each system are available after the table.

Shaker KitMax Force
lbf (N)
Max Frequency
Hz [1]
Stroke
In (mm) pk‑pk
Shaker ModelAmplifier Model
Accessories Included
Application
Miniature Shaker Kits
K2002E012 (9)3 0000.35 (8.9)2002E2000EModal analysis, general vibration, small structures [circuit board to small appliance]
K2004E0044.5 (20)11 0000.2 (5)2004E2100E21-100
K2004E014.5 (20)11 0000.2 (5)2004EIntegrated
K2007E0077 (31)9 0000.5 (13)2007E2100E21-100
K2007E017 (31)9 0000.5 (13)2007EIntegrated
Modal Shaker Kits
K2025E01313 (58)9 0000.75 (19)2025E2100E21-400Modal analysis, small to medium structure [component to automotive]
K2060E03030 (133)6 0001.4 (36)2060E2100E21-400Modal analysis, medium to large structures [washing machine to auto/aerospace]
K2100E03535 (156)5 4001.0 (25)2100E112100E21-400
K2060E06060 (267)6 0001.4 (36)2060E2050E09
K2100E100100 (440)5 4001.0 (25)2100E112100E18
Vibration Shaker Kits
K2025E013-HF13 (58) [2]20 0000.5 (13)2025E-HF2100E21-400Dual purpose design, modal and general vibration testing
K2075E04040 (178)6 5001.0 (25)2075E2100E21-400
K2075E07575 (334)6 5001.0 (25)2075E2050E09
K2110E110110 (489)6 5001.0 (25)2110E2050E09-F5
Vibration Test Shaker Kit
K2500E050500 (2 224)4 5001.0 (25)2500E2050E12-7Vibration Testing

[1] Load dependent
[2] Up to 14 000 Hz

Vibration Shaker System Descriptions

  • Miniature Shaker Kits

  • K2002E01 – Miniature Inertial Shaker

    Miniature Inertial Shaker Kit, 2 lbf pk sine force, able to operate in any direction, includes 2002E inertial shaker, 2000E mini amplifier, carrying case, accessories.

  • K2004E004 – Mini Shaker

    Miniature Shaker Kit, 4.5 lbf pk sine force, 0.2" pk-pk stroke, supports payloads to 2 lbs, includes 2004E miniature shaker with integrated cable, 2100E21-100 SmartAmplifier, trunnion base, and 2110G06 stinger kit.

  • K2004E01 – SmartShaker

    Miniature shaker with integrated amplifier with BNC input, 4.5 lbf pk sine force, 0.2" pk-pk stroke, supports payloads to 2 lbs. Includes trunnion base, 2110G06 stinger kit, and heavy duty case.

  • K2007E007 – Mini Shaker

    Miniature Shaker Kit, 7 lbf pk sine force, 0.5" pk-pk stroke, supports payloads to 2 lbs, includes 2007E miniature shaker with integrated cable, 2100E21-100 SmartAmplifier, trunnion base, and 2110G06 stinger kit.

  • K2007E01 – SmartShaker

    Miniature shaker with integrated amplifier with BNC input, 7 lbf pk sine force, 0.5" pk-pk stroke, supports payloads to 2 lbs. Includes trunnion base, 2110G06 stinger kit, and heavy duty case.

  • Modal Shaker Kits

  • K2025E013 – Modal Shaker

    Modal Shaker Kit, 13 lbf pk sine force, 0.75" pk-pk stroke, includes 2025E modal shaker with 2100E21-400 power amplifier, stingers, and accessories.

  • K2060E030 – Modal Shaker

    Modal Shaker Kit, 30 lbf pk sine force, 1.4" pk-pk stroke, includes 2060E modal shaker with 2100E21-400 power amplifier, stingers, and accessories.

  • K2100E035 – Modal Shaker

    Modal Shaker Kit, 35 lbf pk sine force, 1" pk-pk stroke, includes 2100E11 modal shaker with 2100E21-400 power amplifier, stingers, and accessories.

  • K2060E060 – Modal Shaker

    Modal Shaker Kit, 60 lbf pk sine force, 1.4" pk-pk stroke, includes 2060E modal shaker with 2050E09 power amplifier, cooling package, stingers, and accessories.

  • K2100E100 – Modal Shaker

    Modal Shaker Kit, 100 lbf pk sine force, 1" pk-pk stroke, includes 2100E11 modal shaker with 2100E18 power amplifier, cooling package, stingers, and accessories.

  • Vibration Shaker Kits

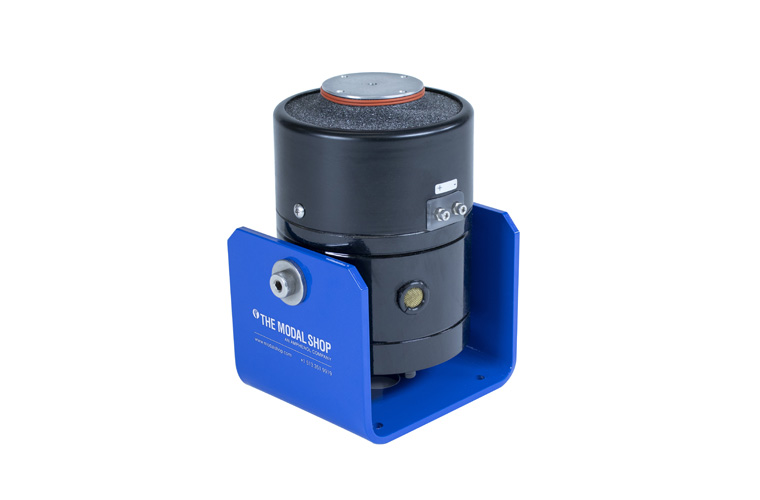

  • K2025E013-HF – Vibration Test Shaker

    Modal Shaker Kit, 13 lbf pk sine force, 0.5" pk-pk stroke, includes 2025E-HF shaker with 2100E21-400 power amplifier.

  • K2075E040 – Vibration Shaker

    Electrodynamic Exciter Kit, 40 lbf pk sine force, 1" pk-pk stroke, supports payloads to 7 lbs, includes 2075E dual purpose platform shaker with 2100E21-400 power amplifier, stingers, and accessories.

  • K2075E075 – Vibration Shaker

    Electrodynamic Exciter Kit, 75 lbf pk sine force, 1" pk-pk stroke, supports payloads to 7 lbs, includes 2075E dual purpose platform shaker with 2050E09 power amplifier, cooling package, stingers, and accessories.

  • K2110E110 – Vibration Shaker

    Electrodynamic Exciter Kit, 110 lbf pk sine force, 1" pk-pk stroke, supports payloads to 10 lbs, includes 2110E dual purpose platform shaker with 2050E09-FS power amplifier, cooling package, stingers, and accessories.

  • Vibration Test Shaker Kit

  • K2500E050 – Vibration Test Shaker

    Electrodynamic Exciter Kit, 500 lbf pk sine force, 1" pk-pk stroke, includes 2500E platform shaker with 2050E12-7 power amplifier, cooling package, and accessories.
