Vibration Test Shaker and Shaker Kit Rental

Modal Shakers | Vibration Shakers | Mini Shakers

Rent a complete shaker kit for structural or product testing. The Modal Shop has expanded our line of electrodynamic exciters and vibration shakers, many of which are now available for rental. The Modal Shop's shakers range from our 4 lbf mini SmartShaker™ with built in amplifier up to our compact 110 lbf dual purpose unit.

Shakers in our dual purpose line include a platform for vibration control tests of components and subassemblies. They are also equipped with a through-hole armature with chuck and collet attachment to allow simple stinger set-up for use as a modal shaker.

Visit our   Modal and Vibration Shaker Educational Portal for selection guides, tutorials, technical papers and more.

Shaker Products related to accelerometer, velometer and proximity probe calibration can be found  here.


Modal Shaker
Kit
Shaker
Model
Amplifier
Model
Max Force
lbf (N) pk sine
Stroke pk-pk
in (mm)
Max Freq
Hz
K2004E0042004E2100E21-1004 (20)0.2 (5)11000
K2004E012004E01Integrated4 (20)0.2 (5)11000
K2007E0072007E2100E21-1007 (31)0.5 (12.7)9000
K2007E012007E01Integrated7 (31)0.5 (13)9000
K2025E0132025E2100E21-40013 (58)0.7 (18)9000
K2025E013-HF2025E-HF2100E21-40013 (58)*0.5 (12.6)20000
K2060E30 or
K2060E60
2060E2100E21-400 or
2050E09
30 (133) or
60 (267)
1.4 (36)6000
K2075E040 or
K2075E075
2075E2100E21-400 or
2050E09
40 (178) or
75 (334)
1 (25.4)6500
K2110E1102110E2050E09-FS110 (489)1 (25.4)6500
K2500E5002500E2050E12-7500 (2224)1 (25.4)4500
K394B30394B302100E21-C15 (67)0.4 (10)50000

*up to 14000 Hz

Mini Shakers Kits

These electrodynamic exciters are small, portable permanent magnet shakers. They are ideally suited for general purpose vibration testing of small components and sub-assemblies, or as excitation transducers for modal, academic, biomedical, or laboratory research. The shakers feature extremely rugged suspension systems using carbon fiber composite leaf armature flexures. Isolated linear bearings provide low distortion and eliminate the need for reaction wrenches when mounting loads to the armature. A trunnion base with EasyTurn™ handles allows for convenient mounting and positioning.

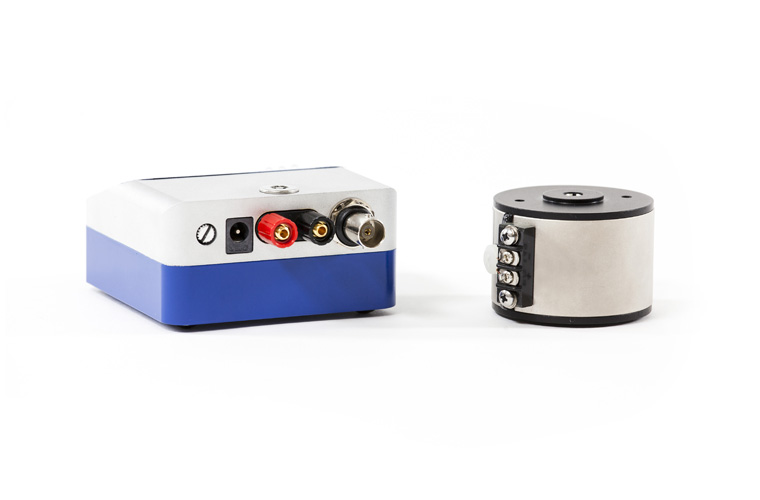

STP K2002E01 Miniature Inertial Shaker Kit Product 1

K2002E002

Miniature Electrodynamic Inertial Shaker

  • 2 lbf pk sine force
  • 0.35" pk-pk stroke
  • 20 to 3000 Hz frequency range
  • Able to operate in any orientation
  • Can install directly to structure or via force transducer
  • Full specs from manufacturer

Rental Includes

  • 2002E - Inertial shaker with mounting hardware
  • 2100E21-100 - Power amplifier with cabling
  • Heavy duty case

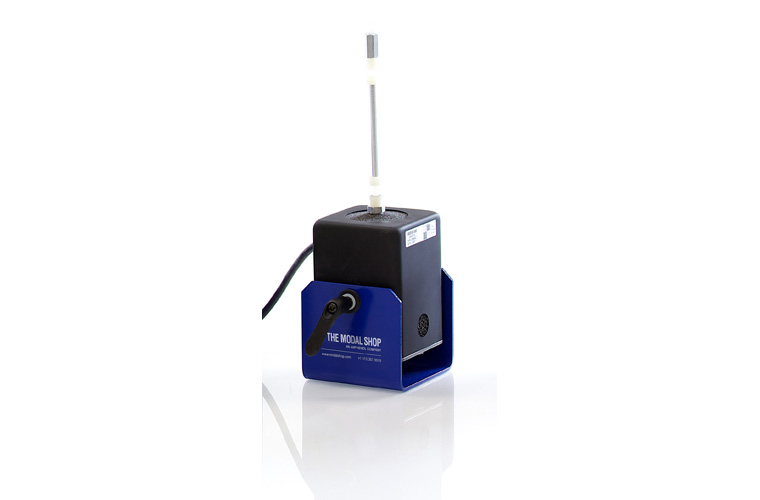

stp 2004e 2007e miniature shaker product 3

K2004E01 and K2007E01

Mini SmartShaker™ with BNC input and integrated amplifier

  • 4 or 7 lbf pk sine force
  • 0.2" or 0.5" pk-pk stroke
  • 11000 or 9000 Hz max frequency
  • Supports 2 lb payload
  • EasyTurn™ handles with trunnion base
  • Full specs from manufacturer

Rental Includes

  • K2007E01-PS - Power supply
  • Heavy duty case

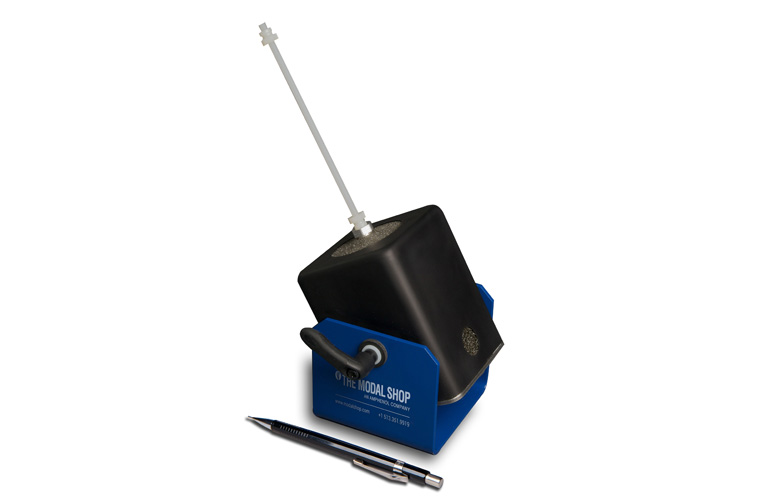

stp 2004e 2007e miniature shaker product 1

K2004E004 and K2007E007

  • 4 or 7 lbf pk sine force
  • 0.2" or 0.5" pk-pk stroke
  • 11000 or 9000 Hz max frequency
  • Supports 2 lb payload
  • EasyTurn™ handles with trunnion base
  • Full specs from manufacturer

Rental Includes:

  • 2007E or 2004E - Mini shaker with trunnion base
  • Heavy duty case

Modal Shakers Kits

For many modal test applications, an electrodynamic shaker system is best suited for creating an appropriate input forcing function. Distributing adequate input force energy across the test structure and obtaining accurate and reliable input force measurements is critical for successful modal and structural testing. This often requires a shaker that is highly portable, rugged and easy to setup in order to facilitate the best exciter location (relative to the test structure) while minimizing any unwanted interaction between the exciter and test structure.


stp 2025e hf high frequenc vibration shaker product 1

K2025E013

  • 13 lbf pk sine force
  • 0.7" pk-pk stroke
  • 9000 Hz max frequency
  • Through-hole armature with chuck and collet attachment
  • EasyTurn™ handles with trunnion base
  • Amplifier included
  • Full specs from manufacturer

Rental Kit Includes

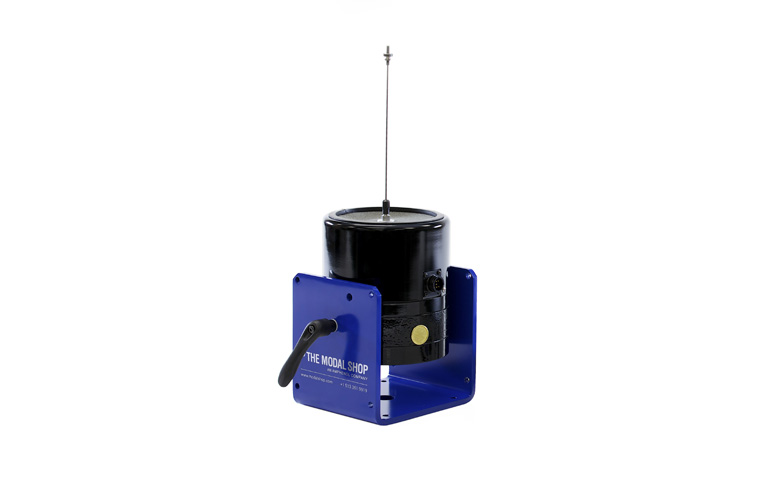

stp 2060e modal shaker product 1

K2060E030 and K2060E060

  • 30 or 60 lbf pk sine force
  • 1.4" pk-pk stroke
  • 6000 Hz max frequency
  • Through-hole armature with chuck and collet attachment
  • EasyTurn™ handles with trunnion base
  • Amplifier included
  • full Full specs from manufacturer

Rental Kit Includes

Note:  Cooling package and 2050E09 required for 60 lbf pk sine force output


Dual Purpose Shakers Kits

The Modal Shop's dual purpose shakers come withe a large armature (3.25 inch [8.3 cm] diameter platform table to support test objects) making the shaker ideal for traditional vibration control testing of components and subassemblies. The unit is also designed with a through-hole armature and includes a chuck and collet attachment, providing simple set-up with stingers for experimental modal analysis applications.

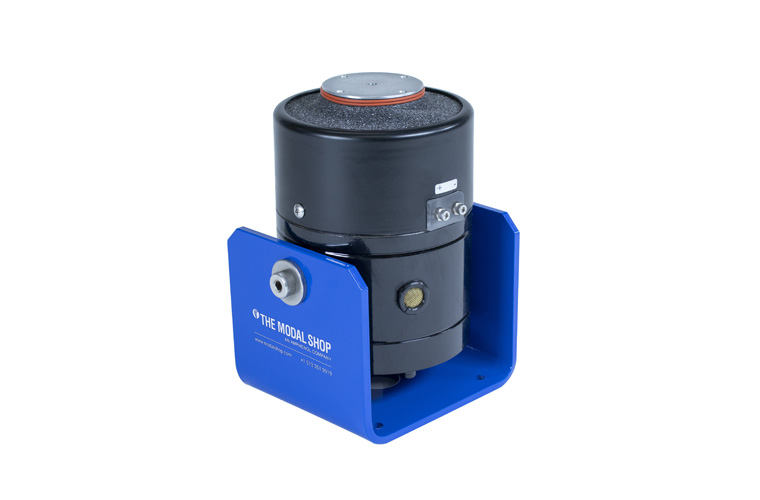

stp 2025e hf high frequenc vibration shaker product 1

K2025E013-HF

  • 13 lbf pk sine force
  • 0.5" pk-pk stroke
  • 20000 Hz max frequency
  • Large specimen mounting table surface (2.125" / 54 mm diameter)
  • Amplifier included
  • Full specs from manufacturer

Rental Includes

  • 2025E-HF - Shaker with trunnion base
  • 2100E21-400 - Power amplifier with cabling
  • Heavy duty case

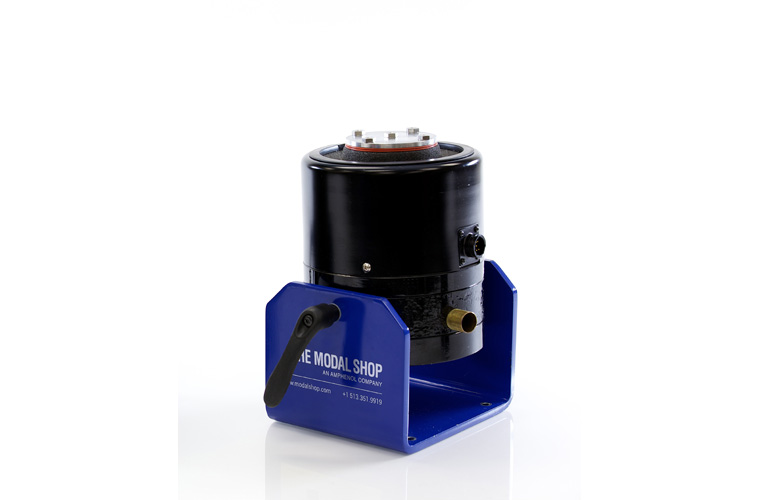

stp 2075e vibration shaker product 1

K2075E040 and K2075E075

  • 40 or 75 lbf pk sine force
  • 1" pk-pk stroke
  • 6500 Hz max frequency
  • 3.25" diam. platform tables and through-hole armature with chuck and collet attachment
  • 7 lb payload capacity
  • EasyTurn™ handles with trunnion base
  • Amplifier included
  • Full specs from manufacturer

Rental Includes

  • 2075E - Shaker with trunnion base
  • 2100E21-400 or 2050E09 - Power amplifier with cabling
  • 2050E03 or 2100E16- 110V or 220V cooling package
  • 2000X03 - Shaker accessory kit

Note:  Cooling package and 2050E09 required for 75 lbf pk sine force output

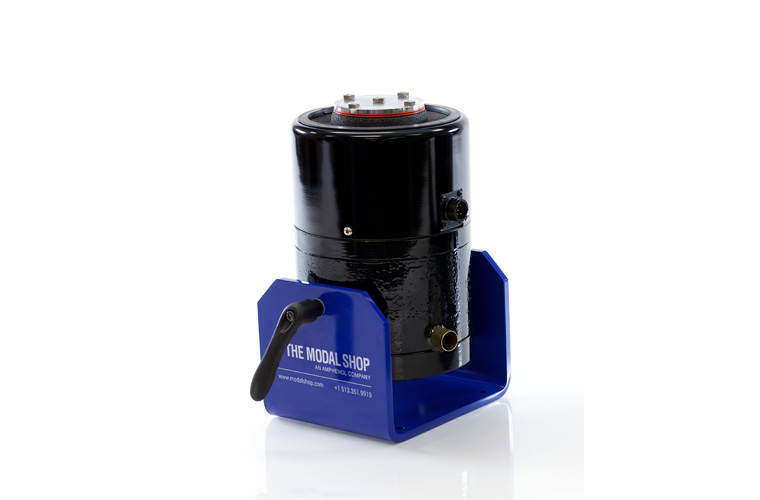

stp 2110e vibration shaker product 1

K2110E110

  • 110 lbf pk sine force
  • 1" pk-pk stroke
  • 6500 Hz max frequency
  • 3.25" diam. platform tables and through-hole armature with chuck and collet attachment
  • 10 lb payload capacity
  • EasyTurn™ handles with trunnion base
  • Amplifier included
  • Full specs from manufacturer

Rental Includes

Note:  Cooling package required for kit

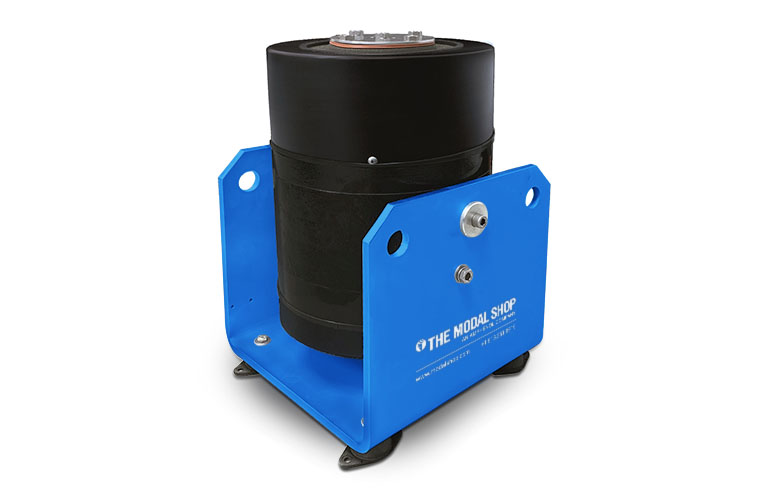

stp 2500e vibration shaker product 1

K2500E500

Rental Includes

Note:  Cooling package required for kit

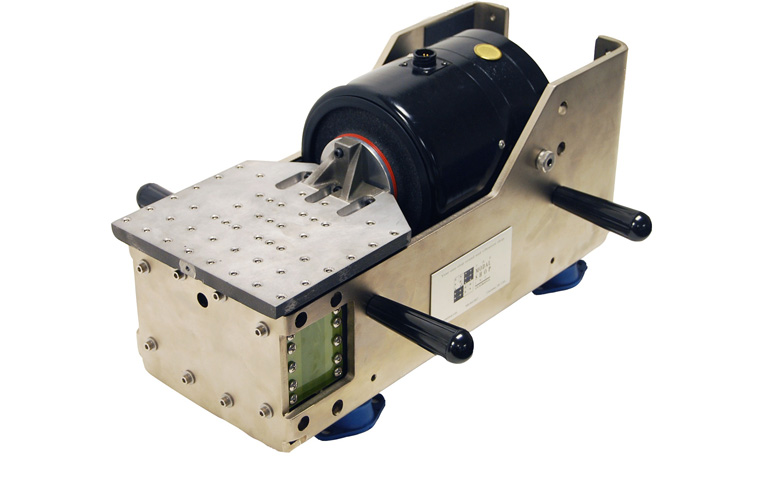

stp k2075e ht k2110e horizontal table product 1

Vibration Shaker Horizontal Table Options

Model K2075E-HT, K2110E-HT, K2500E500-HT Horizontal Table Vibration Shaker Kits

Full specs from manufacturer

Rental Shipping Cases

  • Horizontal Table and all items above ship in a case with custom foam unique to The Modal Shop Rental Program. No additional packaging is required. Case with Horizontal Table and items is 28" x 21" x 15.5"”, 102 lbs.

Calibration Shaker Kits

The precision air bearing calibration shaker is well suited for or use in the demanding environment of high volume, production comparison accelerometer calibration systems. Unlike other air bearing shakers that use rubber bands to adjust and balance the armature, The Modal Shop's aire bearing shaker uses a unique Lorentz force lifting mechanism making calibration of various accelerometer sizes quick and easy. An integral reference accelerometer mounted within a beryllium insert has a mounted resonance greater than 70 kHz permitting the shaker to be used for resonance searches to over 50 kHz while also limiting unwanted transverse motion.


cal k394b30 product 1

K394B30

  • ICP® reference standard with signal conditioner and SmartAmp™
  • 0.4" pk-pk stroke
  • 6500 Hz max frequency
  • 3.25" diam. platform tables and through-hole armature with chuck and collet attachment
  • 1 lb payload capacity
  • Amplifier included
  • Full specs from manufacturer

Rental Kit Includes:

  • 396C11 - Air bearing shaker
  • 080A200 - Beryllium insert (1/4-28 mount) with internal reference sensor
  • 482A21 - ICP® sensor signal conditioner
  • 003C10 - Reference sensor cable
  • 012A03 - Signal conditioner output cable
  • 012A01 - Shaker cable
  • 2100E21-C - Power amplifier with cabling

Note:  Compressed air to be supplied by user
