Structural Test Support Fixtures and Accessories Rental
For Modal and Vibration Testing

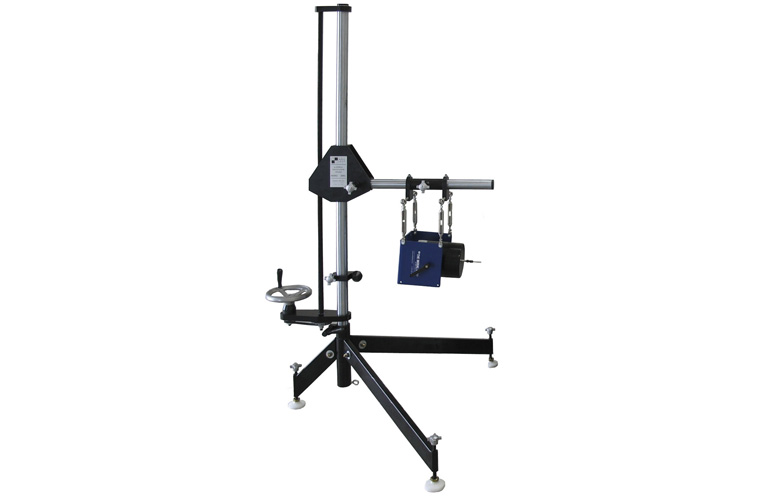

Lateral Excitation Stand 2050A
Model 2050A provides an easy way to position a shaker to provide lateral input, useful to excite all modes when performing a MIMO test. The stand is also ideal when using a tensioned piano wire stinger, greatly reducing unwanted transverse force input
into the test article.
Note: Unlike shakers and amps that ship via common carrier, the shaker stand is crated and shipped via freight. Shipping information: 6 x 2 x 1 ft, 185 lbs (84kg). *shaker not included
AirRide Test Fixture Support 8032S
Air spring to support and isolate structures for modal testing; several may be used to test large structures. Offers typical mounting frequency of 2.88Hz for 650lb load. 1790lb max capacity per support.

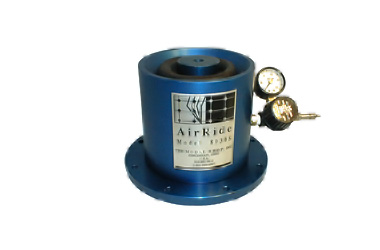

AirRide Test Fixture Support 8030S
Air spring to support and isolate structures for modal testing; several may be used to test large structures. Offers typical mounting frequency of 1.35Hz for 310lb load. 680lb max capacity per support.
TEDS Sensor Interface Kit 400B76
Enables read/write communication to TEDS sensors over PC USB interface. Includes Windows software, USB adapter, and 10-32 microdot cable. Supports IEEE 1451, P1451 and LMS templates.
