ICP Sensor Signal Conditioner

USB Powered - Dual Channel | Model 485B36

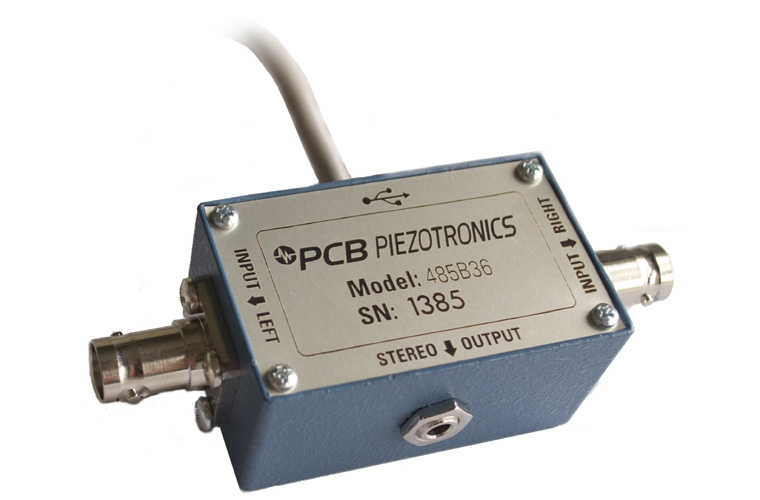

STP-485B36-USB-Signal-Conditioner-Product-1Widen your data acquisition options by connecting your ICP® sensors to your PC sound card. Model 485B36 is a pocket-sized, dual-channel, ICP sensor signal conditioner that requires no batteries for operation. The 485B36 is powered by solely USB. Now your PC sound card or other data acquisition device can record signals from a wide range of ICP accelerometers, microphones, force sensors, tachometers (using LaserTach or PulseDriver), and dynamic strain gauges.



  • Achieves low noise performance of battery-powered signal conditioners without the hassle of replacing batteries
  • Utilizes power supplied through PC USB port
  • Supports all existing ICP (IEPE) sensors
  • Compact package is ideal for “road warriors” who need quick data samples without transporting an FFT analyzer

Connect ICP sensors to the 485B36 using standard BNC jacks. The 485B36 conditions the input signals and outputs the low impedance voltage signals on an 1/8" (3.5 mm) stereo jack. The 485B36 includes the 009M130 cable for direct connection to a PC sound card and the 009M131 cable to adapt the 485B36 for input to BNC connectors on other data acquisition devices.
