Rent Portable Shaker for Plant Shutdowns (TAR)

Test Machinery Protection Systems

Maintenance Turnarounds or Shutdowns are necessary and have many benefits that can only occur if the plant is temporarily shut down. Even though they render a plant nonoperational for a duration of time; which means loss of production and revenue; they are an important investment in the plant’s future. Turnarounds are also important because they are often mandated by various regulatory bodies. This is required with the goal of preventing accident, Improving safety of employees and contractors, and protecting the environment from any incidents or disasters. In addition to regulations which might require the plant to have a turnaround periodically, they’re also necessary to meet the warranty requirements on various pieces of expensive equipment.

Some plants only test once or twice per year during scheduled outages. Our rental program gives them the benefits of increased safety, uptime and confidence without requiring a capital expenditure. NIST traceable Portable Vibration Calibrators can be rented for as little as one week and include a calibration certificate. Rental spending can be credited to future purchases should the need arise. Ask us about our Rental Program.


Portable Vibration Calibrator Applications


9100 Series | Broad Frequency: 5 Hz – 10 kHz

Model 9100D Portable Shaker TableModel 9110D Portable Vibration Calibrator

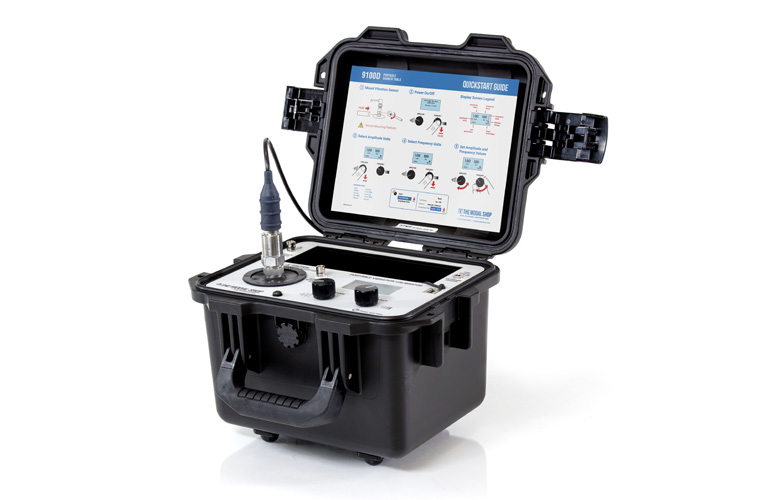

The 9100D Portable Shaker Table is designed to withstand the harsh conditions of the industrial environment and can be taken directly to the location of installed sensors – eliminating downtime and making regular calibration a viable option. This product is ideal for:

  • API 670 compliant system testing
  • Troubleshooting, SIL confirmation
  • 4-20 mA vibration transmitter linearity & vibration analyzer calibration reports

Learn more

The 9110D Portable Vibration Calibrator, building on the benefits of the 9100D, offers real-time calculation and display of test sensor sensitivity, saves calibration records and facilitates generation of calibration certificates. This product is ideal for:

  • Creating ISO 16063-21 compliant accelerometer calibration certificates
  • Dynamically creating proximity probe linearity calibration certificates
  • Discovering & troubleshooting proximity probe installation errors
  • Testing for accelerometer sensitivity drift

Learn more


9200 Series | Low Frequency: 0.7 Hz – 2 kHz

Model 9200D Low Frequency Portable Shaker TableModel 9210D Low Frequency Portable Vibration Calibrator

The 9200D Low Frequency Portable Shaker Table is designed to verify critical vibration instrumentation used to protect slow speed rotating equipment as low as 0.7 Hz (42 CPM). This product is ideal for:

  • Loop checks on vibration monitoring systems protecting slow speed machinery
  • Testing emergency seismic detection and shutdown systems

Learn more

The 9210D Low Frequency Portable Vibration Calibrator allows generation of ISO 17025 compliant vibration calibration certificates, reducing perceived insurance risks and promoting a safe working environment. This product is ideal for:

  • Creating ISO 16063-21 compliant accelerometer calibration certificates for high sensitivity, low frequency transducers
  • Testing for sensitivity drift on velocity sensors, velometers or moving coil displacement sensors
  • New features coming soon... 9200-CALROUTE

Learn more

 Broad Frequency
9100D and 9110D
Low Frequency
9200D and 9210D
Operating Range5 Hz – 10 kHz
300 – 600 000 CPM
0.7 Hz – 2 kHz
42 – 120 000 CPM
Payload800 grams800 grams
Battery Life18 hours14 hours
Acceleration Accuracy± 3% (10 Hz – 10 kHz)
± 5% (< 10 Hz)
± 3% (2 Hz – 2 kHz)
± 10% (0.7 Hz - < 2 Hz)
Maximum Amplitude20 g pk, 15 ips pk, 50 mils pk‑pk2 g pk, 12 ips pk, 200 mils pk‑pk
Reference AccelerometerQuartz element, 10 mV/g nominal, connection providedQuartz element, 100 mV/g nominal, connection provided
ISO 16063‑23‑CompliantYesYes

Why The Modal Shop?

The Modal Shop is a sister company to the Industrial Monitoring Instrumentation (IMI) division within the PCB group of companies now under MTS Sensors. IMI is the premier global source for vibration sensors in predictive maintenance and process monitoring. The historic PCB Group's roots trace back to the founding of PCB Piezotronics by brothers Bob and Jim Lally almost 50 years ago. Over the course of 25 years The Modal Shop, as part of the PCB Group and now as an MTS Sensors Corporation, has become the global leader in vibration calibration as both a solutions provider and source of knowledge/training/support. We are a small, blue-collar company in Cincinnati, Ohio and we believe:

  • The phone should be answered by a person
  • Our customer's questions are more important than internal meetings
  • In making field testing and calibration easy
  • Accuracy is important and should be validated by a 3rd party to global standards
  • Production quality cannot be compromised... ever
