Machine Vibration Monitoring Kit Rental

Predictive Maintenance Solutions

The Modal Shop's Rental Program offers a variety of solutions for machine vibration monitoring - from USB Digital Accelerometers to Handheld Vibration Meters. Learn more about solutions designed to simplify your vibration monitoring routes.

digi k333d01 product 1

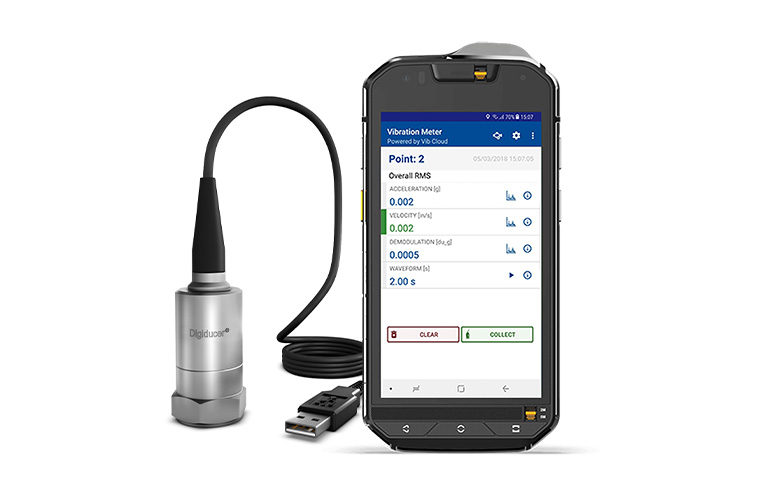

Digital Vibration Meter Kit K333D01

  • Turns your smartphone into a portable vibration meter
  • Turn-key kit includes mounting hardware and connections
  • Pre-programmed ISO vibration severity scales provide instant exceedance feedback
  • Cost effective, ideal for beginners or for enhancing broader vibration programs
  • Frequency Response up to 8 kHz
  • USB Capabilities Make Measuring Easy

Rental Includes

  • 333D01 Digiducer USB Digital Accelerometer
  • 080A131 Magnetic mounting base
  • System controller (typically an iPad) loaded with vibration monitoring software.

More information can be found on the  Digiducer website.

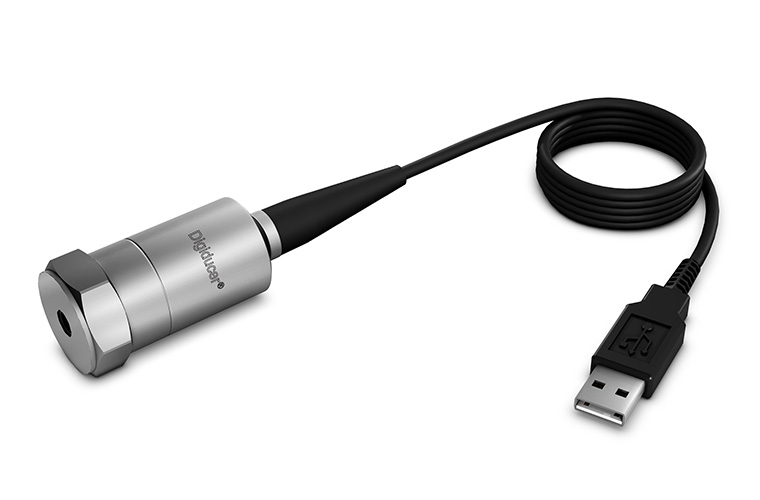

USB Digital Accelerometer 333D01

  • Easy Plug-and-Play Device
  • Useful for Diverse Applications
  • ±20g range
  • Frequency Response up to 8 kHz
  • 1/4-28 male mounting
  • USB Capabilities Make Measuring Easy
  • Couples with software for an easy-to-use Vibration Analyzer
  • Full specs from manufacturer

Rental Includes

  • 080A156 - 1/2-20 to 1/4-28 mounting stud with hex socket
  • Calibration - NIST traceable and ISO 17025/A2LA accredited single point amplitude response calibration at 6000cpm (100Hz) (TMS: MCS-A002 or PCB: ICS-2).

More information can be found on the  Digiducer website.

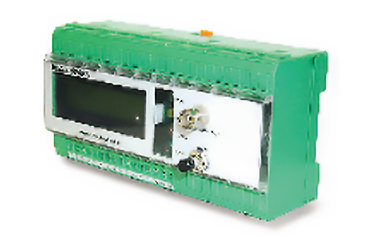

VibeAlarm™ SDC002

  • Excess Machinery Vibration Limit Switch
  • Two Levels of Alarm with Latching or Momentary Settings
  • Computer Programmable Band-Pass Filtering
  • LCD Display or Output with LED Indicators
  • BNC Provides Raw Accelerometer Signal
  • ICP® Sensor Power

Rental Kit Includes

  • SDC002 - VibeAlarm
  • Selectable sensor - Single channel accelerometer
  • Setup software
  • Serial connection cable

Handheld Vibration Meter Kit 687A01

  • Conveniently measures velocity and acceleration
  • Conforms to ISO 2954 and 10816
  • Measures vibration severity
  • Troubleshoots permanently installed sensor cables
  • Verifies DC sensor bias voltage
  • Full specs from manufacturer

Rental Kit Includes

  • 687A02 - Meter
  • 603C01 - ±50g range industrial sensor
  • 070A47 - Headphones
  • 050BQ006AC - Sensor cable
  • 080A131 - 35lb curved surface magnet
  • Batteries
