Endevco Accelerometer Simulator Rental

Troubleshoot Test Systems | Model 4830B

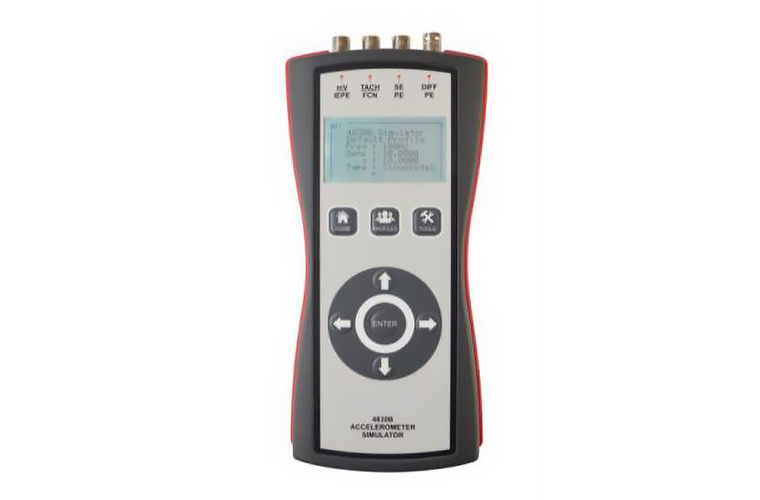

Endevco’s Accelerometer Simulator Model 4830B is a signal generator designed to mimic the electrical output of common accelerometers. This systems acts as a known input source, allowing users to set up, test, or troubleshoot data acquisition systems, FFT analyzers, or environmental test systems.




  • Handheld
  • Battery operated
  • Adjustable output level
  • On-screen vibration calculator
  • Ability to create, store, and recall up to 40 simulation profiles
  • Adjustable, TTL-based Tachometer output for condition monitoring systems


  • Mimic various types of accelerometers, including voltage mode, single ended charge mode, or differential charge mode
  • Analyze vibration signals with the built-in FFT function.
  • Use as a signal generator
Accelerometer Simulator Model 4830B Input/Output Characteristics


  • Single-ended Charge (pC)
  • Differential Charge (pC)
  • Single-ended Voltage (mV)
  • Tachometer (TTL)
  • IEPE - current sinking, 2-20 mA, at a compliance voltage of 24 VDC

Frequency Range

  • Signal Outputs: 1 Hz to 20 kHz, resolution 0.5 Hz
  • Tachometer Output: 1 Hz to 25 kHz


  • Up to 10,000 pC or mV pk
  • Acceleration and Velocity are in pk units
  • Displacement is in pk-pk

FFT Input

  • Maximum 5 V pk

Full specs from manufacturer

Rental Includes

  • 4830B-CAL - Handheld accelerometer simulator including quick start guide, Twinax BNC plug, 10-32 to BNC adaptor, power supply, carrying case, USB interface cable
