Vibration Shaker Head Expander

Increase Mounting Footprint for Testing | Model 2000X01

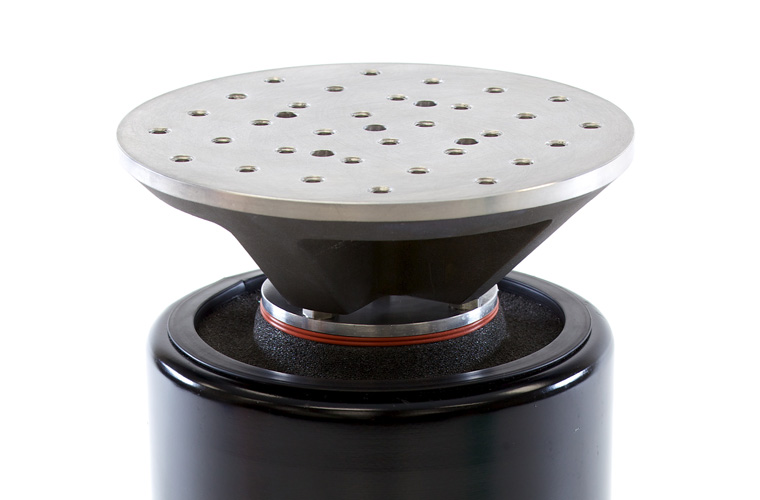

STP 2000X01 Shaker Head Expander Product 1The 2000X01 Head Expander, designed for use with the 2075E and 2110E vibration shakers, increases the mounting footprint for vibration shaker testing.  By providing a broader mounting surface, the Head Expander allows shaker users to test objects larger than those that can be attached directly to the shaker platform.  With the ability to test objects of greater size or footprint, Head Expanders permit shakers to be used in a more diverse range of applications. The 2000X01, composed of lightweight magnesium, offers high strength-to-weight ratios.  The Head Expander weighs 2.0 lbs (0.9 kg), has a 7 in (175 mm) diameter, and includes a hole pattern to match the top of the shaker.

CE| UKCA

Highlights

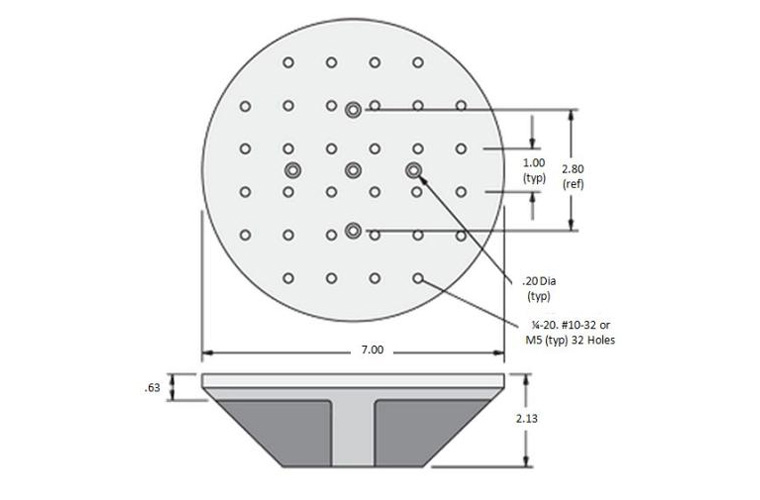

  • stp head expander illustration 1Quadruples existing shaker mounting surface area
  • Increases shaker testing capabilities
  • High strength-to-weight ratios due to magnesium construction

The 2000X01 Head Expander is available for both the 2075E and 2110E general purpose vibration shakers.  A metric version, M2000X01, makes the head expander suitable for use with M5 inserts.

General Specification

Weight2.0 lbs
Dimensions7 x 2.1 inches
Mounting Surface Thickness0.63 inches

Acceleration Uniformity

Standard Grid Frequency Range
+/- 1 dB DC - 1800 Hz
+/- 3 dB DC - 3500 Hz
