OROS Analyzers and Recorders Rental

8- and 16-Channel | Models OR35 and OR36

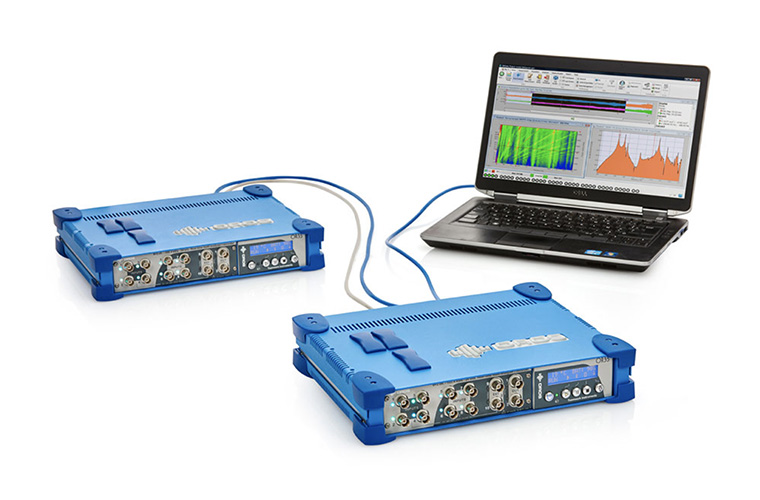

The OROS 8 and 16 channel PC-based analysis, includes acquisition front-end, conditioning and sampling, time domain recorder and real-time processing of all inputs. Includes NVGate® software installed on provided system controller.

OROS 35K and 36K features:

  • 100 Mbit/s Eethernet connection
  • ±10 V 24-bit ICP inputs
  • AC/DC power supply
  • 40 kHz realtime bandwidth
  • 2 trigger/tachometer and 2 generator outputs
  • 3 parametric (DC) inputs at 10 S/s

OROS 35K and 36K additional options:

  • Additional channels available
  • Automatic reporting
  • 1 or 2-plane balancing
  • Structural analysis
  • Sound power, intensity, quality
  • Advanced Swept Sine

See more on the website at www.oros.com

OROS Rental Configurations
OR35KOR35 8-channel analyzer, operates on AC/DC or internal battery power. 2.8kg. Includes Time Domain Recorder, FFT, Constant-Band / Synchronized Order Analysis, 1/n octave, and Overall Acoustics modules, additional modules available
OR36KOR36 16-channel analyzer, operates on AC/DC or internal battery power. Embedded 40GB hard drive. 5.2kg. Includes Time Domain Recorder, FFT, Constant-Band / Synchronized Order Analysis, 1/n octave, and Overall Acoustics modules, additional modules available
