Digital ICP-USB Signal Conditioner Rental

Digitize ICP Sensors | Model 485B39

485b39 Digital ICP-USB Signal ConditionerCondition and analyze two ICP® channels from a device that fits in your pocket. Also available in a kit with system controller and preinstalled time and frequency analysis software. The Digital ICP-USB Signal Conditioner Model 485B39 is designed to be used with any ICP/IEPE-powered sensors:

  • Accelerometers
  • Microphones
  • Impact Hammers
  • Force Transducers
  • Laser Tachometers
  • and more

Designed to Simplify Testing

  • Makes high quality measurement more accessible
  • Pocket-sized ICP to USB signal conditioning and analysis
  • Analysis options from time domain to RMS to FFT and more
  • No driver installation required
  • Easily save and share data

485b39 Digital ICP-USB Signal Conditioner


  • ICP / IEPE conditioner, 4mA current per channel
  • 24-bit ADC (16-bit selectable)
  • ± 10 V pk voltage range nominal
  • Analysis Frequency Range 0.7 Hz to 20.7 kHz (±5%)
  • 2 BNC jack sensor input
  • 280 mm integral USB connector cable terminating in Type A
Rental Includes
  • Conformance Cert – Includes connectivity information
  • Manual – Includes connectivity information
  • Adaptors – Lightning Male to USB-A Female, and USB-C Male to USB-A Female

digi k485b39-DigitalICP-with-phone-and-SignalScopeX product

K485B39 Dual Channel Analysis Kit

  • Avoid Installation of Software with all benefits of 485B39 above plus:
  • System Controller (typical choices include iPad or Windows Laptop)
  • Time and Frequency Analysis software installed
Rental Includes
  • 485B39 - Includes manual and conformance certification per above
  • System Controller - Includes connectivity information
  • Connectivity Accessories as Required - e.g., for iPad: MD821AM/A USB A to Lighting Adaptor
  • Installed Software – Includes SignalScope X

Note: Other software options are available. See a detailed list of software and features available for various platforms here.

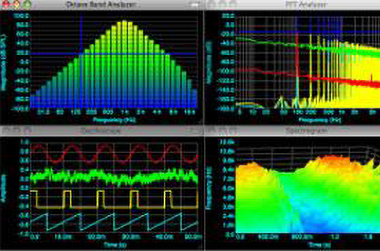

digi SignalScopePro3.0 software

SignalScope Pro 3.0

Real Time Data Acquisition
  • Time and Frequency Domain
  • Multiple block sizes, windowing options available
  • Support for engineering units
  • Export data to multiple file formats for use in other programs
Calibration Supported
  • Assign labels, units, and sensitivities to individual input and output channels
