Acoustic Testing Accessory Rental

Mounting | Acoustic Calibrators | Outdoor Protection

The Modal Shop's Rental Program offers a wide range of acoustic testing accessories from weather stations for your outdoor noise monitoring applications to specially designed adaptors and tripods.

Sound Level Meter Options

Additional Options for Sound Level Meters and Outdoor Noise Monitoring Systems

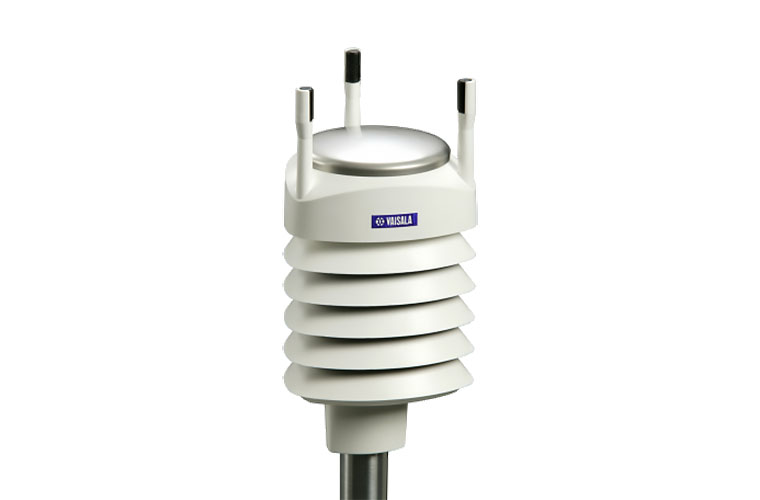

SEN031

Combined weather sensor: wind speed and direction, temperature, humidity, pressure, rainfall. For use with systems based on Sound Level Meter Models 831 and 831C only.

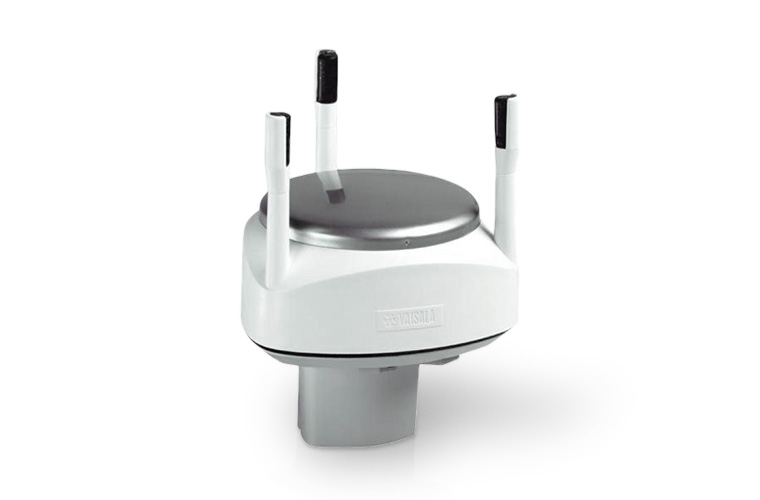

SEN032

Weather sensor: wind speed and direction. For use with systems based on Sound Level Meter Models 831 and 831C only.


831-GPS

Includes Global Positioning information with measurements, for fixed or roving tests. Connects via auxiliary USB input. For use with Sound Level Meter Models 831 and 831C only.


CCS001-831-4

Free! Renting multiple 831 or LxT meters? Request they be put into this multi - case to save on shipping. This rugged case holds 4 meters, mics, preamps, and a calibrator.


SWW DNA

Data Navigation and Analysis software allows advanced tools to analyze and report data: organization tools for templates, graphics and measurements


Microphone to Preamplifier Adaptors

ADP043

1/4" microphone to 1/2" preamplifier adaptor


ADP009

1/2" microphone to 1/4" preamplifier adaptor


ADP008

1" microphone to 1/2" preamplifier adaptor


ADP005

BNC to 1/2" microphone thread adaptor, 18pF with shorting cap


Preamplifier Clips / Microphone Clips

Holders and stands for test and measurement microphones, clips attach securely with a press fit to the preamplifier.

079A11

1/2" diameter preamplifier mounting clip, 1/4"-20 thread
Full specs from manufacturer


079A10

1/4" diameter preamplifier mounting clip, 1/4"-20 thread


079A29

Swivel base stand to holder adapter, 1/4"-20 threaded base, 1/4"-20 stud to mate to mounting clip (supplied separately)
Full specs from manufacturer


079C23

Swivel base stand to holder adapter, 1/4"-20 threaded base, 1/4"-20 stud to mate to mounting clip, plus 1/4" and 1/2" mounting clips
Full specs from manufacturer


079B10

1/4" microphone clip for array and condenser systems, 1/4"-20 thread
Full specs from manufacturer


079A24

Standard Camera Mounting Base Adaptor to convert 5/8"-27 tripod boom to standard 1/4"-20 stud
Full specs from manufacturer


Calibration

Calibration devices and adaptors

CAL200

Key Specifications
  • Constant 1 kHz (±1%) frequency
  • Selectable 94 dB or 114 dB (±2 dB) re: 20 µPa SPL
  • 1/2" opening
  • Operates on 9 V battery
  • IEC 60942-1:2003 Class 1 compliant
  • Full specs from manufacturer
Rental Includes
  • Battery - 9 V battery
  • Calibration - Traceable calibration certification

ADP024

1/4" microphone adaptor for 1/2" acoustic calibrators, used to adapt CAL200 opening for use with 1/4" array and precision microphones


ADP031

3/8" microphone adaptor for 1/2" acoustic calibrators, used to adapt CAL200 opening for use with 3/8" microphones


CAL250

Key Specifications
  • Constant 251.2 Hz (±2 Hz) frequency
  • 114dB (±01 dB) re: 20 µPa SPL
  • 1" opening
  • Operates on 9 V battery
  • IEC 60942-1:2003 Class 1 compliant
  • Full specs from manufacturer
Rental Includes
  • Battery - 9 V battery
  • ADP019 - 1" to 1/2" microphone adaptor
  • Calibration - Traceable calibration certification

ADP019

1/2" microphone adaptor for 1" acoustic calibrators, used to adapt CAL250 opening for use with 1/2" microphones


ADP021

1/4" microphone adaptor for 1" acoustic calibrators, used to adapt CAL250 opening for use with 1/4" microphones


394A40 Pistonphone

Key Specifications
  • Constant 250 Hz (±0.5%) frequency
  • 114 dB (±0.08 dB) re: 20 µPa SPL
  • 1" opening
  • Operates on four AA batteries
  • IEC 60942-1:2003 Class 1 compliant
  • Full specs from manufacturer
Rental Includes
  • Battery - Four AA batteries
  • 079A22 - adaptor for 1/4" microphone
  • RA0069 - adaptor for 1/8" microphone
  • ZC0002K - Barometer
  • Calibration - Traceable calibration certification

Similar to: GRAS 42AA

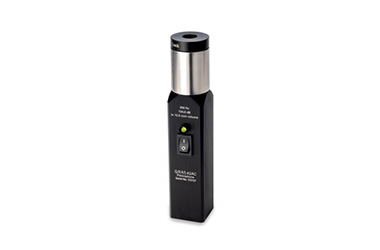

Gras 42AC Pistonphone

Key Specifications
  • Constant 250 Hz (±0.5%) frequency
  • 134 dB (±0.08 dB) re: 20 µPa SPL
  • 125.4 dBA re. 20 μPa with A-weighting applied
  • 1/2" opening
  • Operates on four AA batteries
  • IEC 60942-1:2003 Class 1 compliant
  • Full specs from manufacturer
Rental Includes
  • Battery - Four AA batteries
  • 079A22 - adaptor for 1/4" microphone
  • RA0069 - adaptor for 1/8" microphone
  • ZC0002K - Barometer
  • Calibration - Traceable calibration certification

Similar to: GRAS 42AA


079A30 or RA0023

Pistonphone to 1" microphone adaptor


RA0043

Pistonphone coupler for TC4013 hydrophone to 394A40 or 42AA pistonphones


Environmental Protection

Series EPS210x environmental shrouds are a perfect choice for longer-term measurements in inclement weather. Its special acoustic windscreen material and configuration protect the microphone from rain, sleet, and snow. The shroud seals the preamplifier in a desiccated chamber, thus preserving performance in high humidity environments. The desiccant volume is many times greater than that of inline desiccant cartridges, for lasting protection without interference between the microphone and preamplifier. The shroud is also equipped with bird-spikes to deter winged intruders.

These environmental shrouds offer an inexpensive option compared with full outdoor microphone preamplifier systems with built-in rain hat, heater and electro-static actuator such as the Model 2100K. The excellent temperature stability of Larson Davis preamplifiers allows operation in a wide temperature range without an internal heater. Models EPS2106 and EPS2106-2 are designed to be mounted on a 3/4" solid wall PVC conduit or similar mating connector such as the ADP034 to interface with large outdoor tripods including the TRP003. EPS2108 and EPS2108-2 are variations of the EPS2106 design that can be mounted on a standard instrument or camera tripod having a 1/4"-20 mounting stud.

079A06 and WS001

3-1/2" diameter windscreen for 1/2" microphones


079A07

3-1/2" diameter windscreen for 1/4" microphones


ACO-WS7

7" diameter windscreen for 1/2" microphones


ACO-WS7-80T

7" diameter windscreen for 1/2" microphones, (80 ppi) dense-treated windscreen


EPS2116

Environmental protection kit for 1/2 in preamplifier (PRM831), flexible mounting options.

Rental Includes
  • Windscreen
  • Bird Spike
  • Rain Hat
  • Desiccant

EPS2106

Larson Davis Environmental protection for 1/2" preamps, includes windscreen, threaded for 3/4" standard solid-wall PVC conduit thread (FEM)

Rental Includes
  • Windscreen
  • Bird Spike
  • Desiccant

EPS2106-2

Environmental protection for 1/2" ICP® preamplifiers (PRMLXT or PRM831), threaded for 3/4" standard solid-wall PVC conduit thread (FEM)

Rental Includes
  • Windscreen
  • Bird Spike
  • Desiccant

EPS2108

Environmental protection for 1/2" preamplifiers, 1/4-20 thread (FEM) for use with standard camera tripods

Rental Includes
  • Windscreen
  • Bird Spike
  • Desiccant

EPS2108-2

Environmental protection for 1/2 in preamplifiers (PRMLXT or PRM831), 1/4-20 thread (FEM) for use with standard camera tripods.

Rental Includes
  • Windscreen
  • Bird Spike
  • Desiccant

Tripods

079A15

Tripod for short term attended testing. Used with 079A11/079A10 clip (ordered separately) that holds the mic/preamp pair with windscreen. Not designed to support meter weight.
Full specs from manufacturer

Rental Includes*
  • 079A24 - Standard Camera Mounting Base Adaptor to convert 5/8"-27 tripod boom to standard 1/4"-20 stud. Click for picture

*Preamplifer/Microphone clips are rented separately and noted in the section above


TRP001

Robust tripod with 3-way tilt/pan head for use with 079A11/079A10 clip (holds mic/preamp pair with windscreen). May support meter weight.
Full specs from manufacturer


TRP003

Large, rugged tripod designed for unattended use in varied weather conditions with NMS system. Max height of 8 ft. Size and weight require special shipping considerations.
