High Payload Accelerometer Calibration
Calibration Shaker for Heavy Sensors | 875 Option

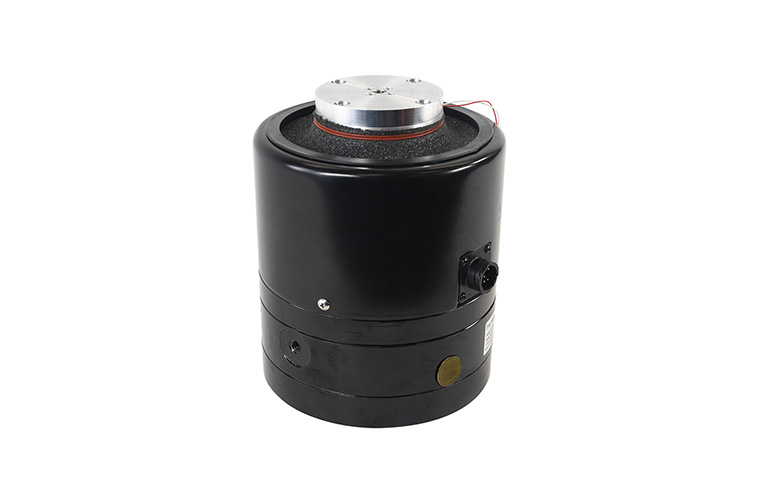

The High Payload Accelerometer Calibration Shaker is an ideal option for the calibration of heavy sensors. The High Payload 9155D-875 option integrates into the Accelerometer Calibration Workstation Model 9155D. This option uses a small and lightweight, yet powerful permanent magnet shaker, providing up to 40 pounds pk sine force.
Rugged flexures support payloads up to 7 lbs (3.2 kg) making the shaker ideal for calibrating heavy sensors or sensors with rigid hardline cables from 10 Hz to 2 kHz (optionally 10 kHz). The unit includes a precision quartz ICP® reference standard for superior stability and performance. A SmartAmp™ power amplifier makes system operation over 92% efficient.
- Flexure based shaker option supports payloads up to 3.2 kg
- Frequency range of 5 Hz to 10 kHz
- High payload for heavy sensors or sensors with rigid cables
- High calibration throughput through simplified mounting and setup
