Data Physics SignalCalc Dynamic Signal Analyzer Rental

Precision Signal Processing and Analysis

The Data Physics SignalCalc Ace on Quattro is ultra portable, USB 2.0 powered Data Acqusition/Dynamic Signal Analyzer.

SignalCalc Ace on Quattro features include:

  • 40 kHz real time bandwidth (optional 90kHz configuration)
  • 24 bit, 120 dB dynamic range
  • Voltage, ICP/IEPE, single ended, or differential inputs
  • AC or DC coupling, ±10 V range
  • 2 or 4 inputs, 2 outputs, optional tachometer
  • Software installed on system controller included with rental

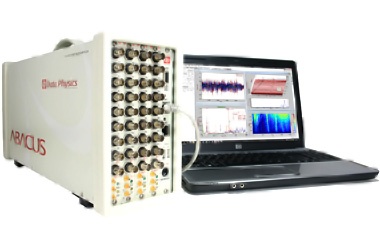

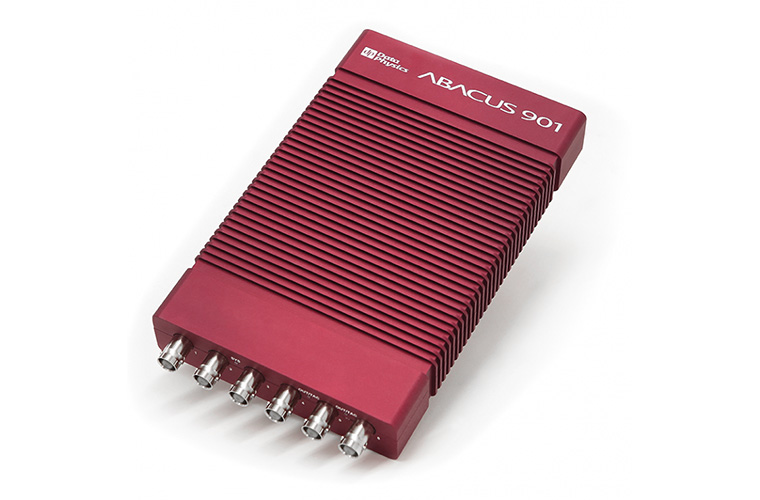

The Data Physics SignalCalc Mobilyzer on Abacus is scalable AC power multi-channel front end Data Acquisition/Dynamic Signal Analyzer.

SignalCalc Mobilyzer on Abacus features include:

  • 49 kHz real time bandwidth (optional 97kHz configuration)
  • 24 bit, 150 dB dynamic range
  • Voltage, ICP/IEPE, single ended, or differential inputs
  • AC or DC coupling, ±10 V range
  • 8 to 32 input channels per chassis
  • 2-8 sources, 2-8 dedicated tachometer channels (optional)
  • Software installed on system controller included with rental

See more on the website at  www.dataphysics.com

SignalCalc Ace on Quattro Rental Configurations
DP240‑2ABasic 2-channel configuration includes Auto-Power Spectrum, Transfer Functions, Synchronous Average, Auto- and Cross-Correlation, Histogram Analysis, Zoom Processing and Throughput to Disk
DP240‑2BBasic 2-channel Acoustic Configuration includes items in DP240-2A plus Real Time Octave Analysis
DP240‑4ABasic 4-channel configuration includes items in DP240-2A plus 1 output channel, Zoom Processing, and High Resolution (25,600 lines)
DP240‑4B*Rotating Machinery Analyzer Package, 4-channel configuration. Includes items in DS240-4A plus 1 tachometer input channel, Waterfall Analysis and Real-Time Order Tracking
DP240‑4CAcoustic Analyzer Package, 4 channel configuration. Includes Auto-Power Spectrum, Transfer Functions, Synchronous Average, Auto- and Cross-Correlation, Histogram Analysis, Zoom Processing, Throughput to Disk, Waterfall Analysis, and Real Time Octave Analysis

*Tachometer only active with DP240-4B Rotating Machinery Package or upon special request.

SignalCalc Mobilyzer on Abacus Rental Configurations
DP730-8ABasic 8-channel analyzer with 1 output channel, Auto-Power Spectrum, Transfer Functions, Synchronous Avg, Auto- and Cross-Correlation, Histograms, High (51200 line) Resolution, Zoom Processing, Disk Throughput, and Waterfall Analysis
DP730-8B*Rotating Machinery Analysis Package includes DP730-8A plus two tachometer input channels, Real-Time Waterfall Based Order Tracking, and Filtered Order Tracking
DP730-8CAcoustic Analysis Package, includes DP730-8A plus Real Time Octave Analysis
DP730+8CHAdditional 8-Channels of input, up to 32 channels total per chassis, includes 2 tachometer inputs per 8 channels

*Tachometer only active with DP730-8B Rotating Machinery Package or upon special request.
