Hi-Techniques Echelon Series Rental

Lab Quality Data Acquisition with Unparalleled Connectivity

Echelon data acquisition system assembledThe Modal Shop’s newest pyroshock and ballistics-capable data acquisition offering, the Echelon series is a modular system based on a single Processor module supporting up to 64 channels at 100 kS/s per channel or up to 16 channels at up to 1 MS/s per channel.

Key Benefits

  • Integrated Universal signal conditioning supports mixing and matching virtually any sensor type
    • Accelerometers (DC, Differential, ICP/IEPE with breakout), Microphones
    • Strain gages
    • Thermocouples (B, C, E, J, K, N, R, S, T with appropriate breakout)
    • Load cells
    • Pressure transducers
  • HS High Speed cards (4-channel, can combine to 16 channels per module) provide 1 MSa/s/ch for SRS (shock response spectrum) per MIL-STD-810 recommendation to accurately obtain accurate peaks for shock and pyroshock testing. Takes advantage of SAR ADC architecture for low latency, high accuracy signal processing with low power consumption, and eliminates overshoot up to 20% (Gibbs Phenomena) compared with Sigma-Delta ADC architecture.
  • HD High Density cards (16-channel, can combine to 64 channels per module) provide 100 kSa/s/ch, variable input ranges. 24 bit SAR ADC. Extremely flexible solution capable of extreme environmental conditions while delivering best-in-class performance.
  • Included software available for PC or tablet provides real-time control, display, and analysis
  • Remote control, power, and system synchronization with a single Ethernet interconnect cable increases flexibility and reduces setup complexity and weight

Key Features

  • IP 67 Environmental rating protects against dust and water
  • Shock protection up to 100 g on 3 axes
  • -40° to +85° C operating temperature
  • Optional GPS/IRIG on the Processor Module allows all data to be time synchronized even between widely separated systems. GPS position is also provided with 20 Hz fast update rate.

Integrated Universal signal conditioning offers software selectable conditioning for virtually any sensor type including strain gages, accelerometers, thermocouples, load cells, and pressure transducers on a per channel basis for maximum configuration flexibility. Need to mix and match sensor types in any configuration? No problem with the Echelon.

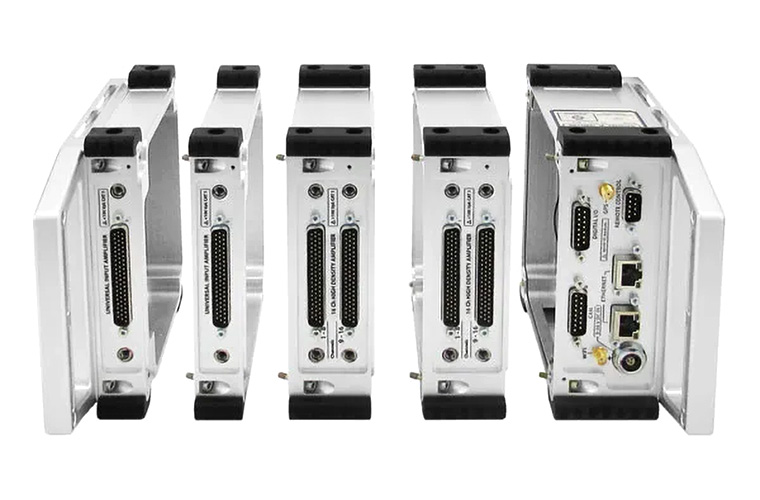

Echelon Data acquisition exploded

ECHELON System & Aspire™ Software Echelon series of Data Acquisition Systems combines lab quality input amplifiers and signal conditioning with unparalleled connectivity in a ruggedized IP 67 rated, portable package. The included Aspire software provides real time setup, display and powerful analysis from any PC or tablet. Combine and view analog data, vehicle bus data, GPS mapping and real time calculations in a single workspace. LiveCalc offers real-time DSP and post processing.

Aspire™ Analysis and Visualization Software

The proven, full featured Hi-Techniques Aspire™ software provides real-time control, display and analysis from a remote PC. The software additionally enables interoperation with Hi-Techniques Synergy range of products. View real-time streaming, scope and spectral data. Combine and view analog sensor data with GPS time and position, CANbus vehicle data and streaming video all from a single easy-to-use software package.

  • Choose from over 100 built-in math functions including arithmetic, statistics, trig, calculus and timing functions
  • Optional macro editor enables full custom display and analysis using the open source Python programming language
  • Export to most popular third-party analysis packages for even greater flexibility
  • Included with rental, and can be continuously utilized after the rental for future post processing

Start Rental Here

System Processor
HT EM-CPU-XESystem Processor Module for Echelon IP-67 Ruggedized Data Acquisition System. 4 input modules, 2 CAN (1 HT), 16 DIO, and 4 Quadratures. Includes power cabling, industrial SSD, cabling, and Aspire Software

Add Module(s)/Breakouts

High Speed / Sample Rate (1 Msa/s/ch, 16-bit) for shock, pyroshock and more
HT EM-HS-10MA4-Channel High-Speed Universal Input Module. 4 independent 16-bit, 1 MS/s SAR type digitizers with pre and post-ADC anti-alias filtering, with 10mA IEPE current. Universal inputs support channel by channel direct connections for voltage, bridge, accelerometer and thermocouple measurements.
Add appropriate breakout interfaces
HT EC-HS-IEPE4-Channel IEPE BNC Breakout Cable for EM-HS Module. Adapts PI667 D-78-pin male connector to individual female BNC jack input connectors.  Individual channel jumpers allow channel by channel switching for DC, AC, or ICP/IEPE (10 mA current, 0.16 Hz AC high pass frequency) inputs types.
HT EC-HS-SLT4-Channel Spring Loaded Terminal Breakout Interface for EM-HS module. Supports DC, Differential DC, DC-Bridge, AC and ICP/IEPE inputs. 7 terminals per channel.
High Density Low Sample Rate (100 kSa/s/ch)
HT EM-HD16-35016-Channel High Density Input Module including bridge, thermocouple, IEPE/ICP, or voltage inputs. Independent 24-bit, 100 kS/s digitizers, selectable input ranges. Supports direct connection of 1/4, 1/2, and full bridge devices with auto-balance and a zero-drift amplifier. Additional support for accelerometer, thermocouple, higher input range available through external breakout connectors.
Add appropriate breakout interfaces
HT EC-HD-IEPE8-Channel ICP/IEPE BNC Breakout Cable for EM-HD Module. Adapts 62-pin male connector to individual female BNC jack input connectors. Individual channel jumpers allow channel by channel switching for DC, AC, or ICP/IEPE (4 mA current, 0.16 Hz AC high pass frequency) inputs types.
HT EC-HD-SLT8-Channel Spring Loaded Terminal Breakout Interface for EM-HD Module. DC, Differential DC, DC-Bridge, Thermocouple Types B, C, E, J, K, N, R, S, T - includes on-board CJC. 6 terminals per channel.

Optional Items

GPS
HT EP-GPS Echelon GPS Time Synchronization and Position. Allows all data to be time synchronized between systems. GPS position is also provided with 20 Hz fast update rate
