Single direction, single axis units. Generally, start the selection with the maximum g amplitude range in mind. Next, verify other factors including temperature, range, mounting type, and cable configuration. Or browse the Shock, Miniature, General Purpose, Modal Array, or Industrial accelerometer sections. For multi-axis testing, consider a triaxial unit or use a triaxial mounting adaptor(see accessories). See calibration notes for information on calibration. Contact us for detailed selection assistance, or for unique requirements not shown.

For high temperature sensors please see the high temperature accelerometer page.

Model
-3dB -10% -5% +5% +10% +3dB
350B01* 100k 0.05 2 - - - - 25k 0.5 150k -65 to +200 5.5
350D02* 50k 0.1 2 4 - - 10k 25k 0.5 150k 0 to +150 4.5
350M90* 25k 0.1 2 4 - - 10k 25k 0.5 150k 0 to +150 4.5
350C03* 10k 0.5 0.2 0.4 - - 10k 25k 0.04 50k 0 to +150 5.4
350C04* 5k 1 0.2 0.4 - - 10k 25k 0.02 50k 0 to +150 5.4
352B70 5k 1 0.4 - 0.7 9k - 20k 0.025 10k -65 to +250 4.3 ✔
352A25 2k 2.5 0.3 0.7 1 10k 13k 20k 0.01 10k -65 to +250 0.6
352A25/NC 2k 2.5 0.3 0.7 1 10k 13k 20k 0.01 10k -65 to +250 0.6
TLD352A57 2k 2.5 - 0.3 0.5 10k 15k - 0.001 5k -65 to +250 1.33
352C23 1k 5 0.7 1.5 2 10k 15k 25k 0.003 10k -65 to +250 0.2
352C23/NC 1k 5 0.7 1.5 2 10k 15k 25k 0.003 10k -65 to +250 0.2
352A60 500 10 5 - - - - 60k 0.0005 5k -65 to +250 6
TLD352C03 500 10 - 0.3 0.5 10k 15k - 0.0005 5k -65 to +250 5.8
352C22 500 10 0.3 0.7 1 10k 13k 20k 0.0015 10k -65 to +250 0.5
352C22/NC 500 10 0.3 0.7 1 10k 13k 20k 0.0015 10k -65 to +250 0.5
352A21 500 10 0.3 0.7 1 10k 13k 20k 0.004 10k -65 to +250 0.6
352A21/NC 500 10 0.3 0.7 1 10k 13k 20k 0.004 10k -65 to +250 0.6
HT352A21 500 10 0.3 0.7 1 10k 13k 20k 0.004 10k -65 to +325 0.6
HT352A21/NC 500 10 0.3 0.7 1 10k 13k 20k 0.004 10k -65 to +325 0.6
353B15 500 10 0.35 0.7 1 10k 18k 30k 0.005 10k -65 to +250 2 ✔
353B17 500 10 0.35 0.7 1 10k 17k 30k 0.005 10k -65 to +250 1.7 ✔
353B18 500 10 0.35 0.7 1 10k 18k 30k 0.005 10k -65 to +250 1.8 ✔
353B03 500 10 0.35 0.7 1 7k 11k 20k 0.003 10k -65 to +250 10.5 ✔
353B04 500 10 0.35 0.7 1 7k 11k 20k 0.003 10k -65 to +250 10.5 ✔
352A24 50 100 0.4 0.8 1 8k 10k 12k 0.002 5k -65 to +250 0.8
352A24/NC 50 100 0.4 0.8 1 8k 10k 12k 0.002 5k -65 to +250 0.8
TLD352C33 50 100 - 0.3 0.5 10k 15k - 0.00015 5k -65 to +200 5.8 ✔
352C65 50 100 0.2 0.3 0.5 10k 12k 20k 0.00016 5k -65 to +200 2 ✔
352C68 50 100 0.2 0.3 0.5 10k 12k 20k 0.00016 5k -65 to +200 2 ✔

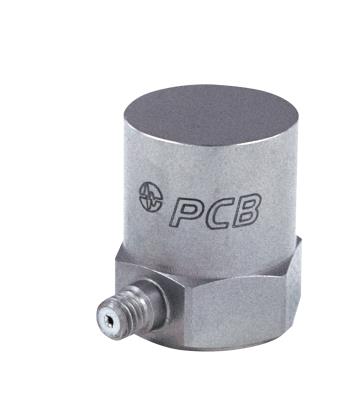

353B33 50 100 0.35 0.7 1 4k 6.5k 12k 0.0005 10k -65 to +250 27 ✔
T333B32 50 100 - - 0.5 3k - - 0.00015 5k -0 to +150 4
TLD333B30 5k 100 - - 0.5 3k - - 0.00015 5k -0 to +150 4

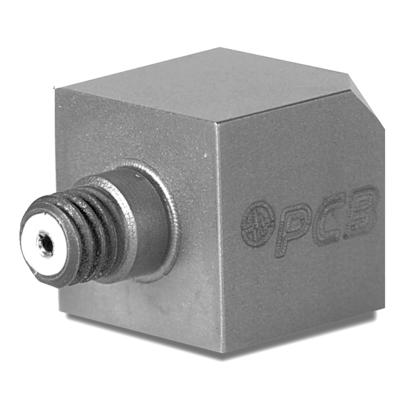

333B 50 100 - - 2 1k - - 0.00007 3.5k -0 to +150 5.6
T333B 50 100 - - 2 1k - - 0.00007 3.5k -0 to +150 5.6
351B41 15 100 0.35 0.7 1 2k 3.5k 5k 0.0005 1k -320 to +250 40 ✔

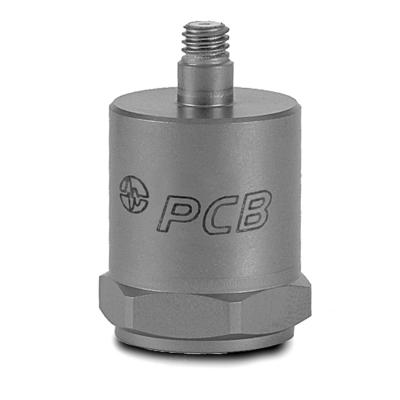

352B 5 1000 - 1 2 10k 15k - 0.00008 1k -65 to +200 25 ✔
TLD333B50 5 1000 - - 0.5 3k - - 0.00005 4k 0 to +150 7.5 ✔

*350 series sensors frequency ranges specified at ±3 dB and ±1 dB range

Note: /NC option indicates no cable included with sensor; cabling options can be found here.

Shock Accelerometers     Back to Top

Designed to withstand and measure extreme high-level, short-duration transient accelerations, units also feature internal filtering for resonance suppression. Applications include metal-to-metal tests, impacts and armor testing, explosive studies, pile driver monitoring, and simulated pyroshock events. High-g shock calibration is included with rental of 350 Series units.


350B01
full specs

  • 0.375" hex titanium sensor
  • ±100000g range
  • 5.5 gram mass
  • 1/4-28 integral stud mounting
  • 10-ft integral cable terminating in 10-32 plug. Use 070A02 scope adaptor to terminate in BNC, or use 070A05 cable connector to 002C or 003C series cable.

Rental Includes:
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration; includes 10g frequency response to upper 1dB point (TMS: MCS-A001 or PCB ACS-22) and high g shock (TMS: MCS-31 or PCB: ACS-14). See notes on calibration for additional information

Similar to: B&K 8339-002, Dytran 3200B,  Kistler 8743A100


350D02
full specs

  • 0.375" hex titanium sensor
  • ±50000g range
  • 4.5 gram mass
  • 1/4-28 integral stud mounting
  • 10-ft integral cable terminating in 10-32 plug. Use 070A02 scope adaptor to terminate in BNC, or use 070A05 cable connector to 002C or 003C series cable.

Rental Includes:
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration; includes 10g frequency response to upper 1dB point (TMS: MCS-A001 or PCB ACS-22) and high g shock (TMS: MCS-31 or PCB: ACS-14). See notes on calibration for additional information

Similar to: B&K 8339-001, Dytran 3200B2, Endevco 2255B & 7255A, Kistler 8743A50 & 8742A50


350M90
full specs

  • 0.375" hex titanium sensor
  • ±25000g range
  • 4.5 gram mass
  • 1/4-28 integral stud mounting
  • 10-ft integral cable terminating in 10-32 plug. Use 070A02 scope adaptor to terminate in BNC, or use 070A05 cable connector to 002C or 003C series cable.

Rental Includes:
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration; includes 10g frequency response to upper 1dB point (TMS: MCS-A001 or PCB ACS-22) and high g shock (TMS: MCS-31 or PCB: ACS-14). See notes on calibration for additional information

Similar to: B&K 8339-001, Dytran 3200B2, Endevco 2255B & 7255A, Kistler 8743A50 & 8742A50


350C03
full specs

  • 0.375" hex titanium sensor
  • ±10000g range
  • 5.4 gram mass
  • 1/4-28 integral stud mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C series cables

Rental Includes:
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration; includes 10g frequency response to upper 1dB point (TMS: MCS-A001 or PCB ACS-22) and high g shock (TMS: MCS-31 or PCB: ACS-14). See notes on calibration for additional information

Similar to: Dytran 3200B5, Endevco 2255B-1 & 7255A-1, Kistler 8743A5 & 8742A5


350C04
full specs

  • 0.375" hex titanium sensor
  • ±5000g range
  • 5.4 gram mass
  • 1/4-28 integral stud mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C series cables

Rental Includes:
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration; includes 10g frequency response to upper 1dB point (TMS: MCS-A001 or PCB ACS-22) and high g shock (TMS: MCS-31 or PCB: ACS-14). See notes on calibration for additional information

Similar to: Dytran 3200B5, Endevco 2255B-1 & 7255A-1, Kistler 8743A5 & 8742A5


352B70
full specs

  • 0.375" hex titanium sensor
  • ±5000g range
  • 4.5 gram mass
  • 10-32 female mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C series cable

Rental Includes:
080A04-Adhesive mounting base, 0.37" hex x 0.2" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
081B05-10-32 to 10-32 adaptor stud
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration; includes 10g frequency response to upper 1dB point (TMS: MCS-A001 or PCB ACS-22) and high g shock (TMS: MCS-31 or PCB: ACS-14). See notes on calibration for additional information

Similar to: Dytran 3200B5T, Kistler 8704B5000

Miniature Accelerometers     Back to Top

Lightweight units are ideal for high frequency testing with a small size and low mass. Applications include environmental testing, component qualification, structural testing and operational behavior of lightweight or thin objects, and fatigue testing.

! When removing teardrop style sensors, it is essential to use the removal tool supplied along with an appropriate debonding agent.


352A25
full specs

  • 0.45"x0.25"x0.14" Titanium sensor
  • ±2000g range
  • 0.6 gram mass
  • Adhesive mounting
  • 3-56 coaxial jack electrical connector. Included 10-ft integral cable terminating in 10-32 plug. Use 070A02 scope adaptor to terminate in BNC, or use 070A05 cable connector to 002C or 003C series cable.
  • /NC (No Cable) option available-use your own or choose custom length and configuration here.

Technique video for installation and removal of miniature accelerometers is key to obtaining valid measurements and to avoid damage to the accelerometer.

Rental Includes:
030A10-10-ft detachable cable. 3-56 plug to 10-32 plug
039A27-Removal tool
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: B&K 4516-001, Endevco 25A, 25B, 7625A & 2250A-10


TLD352A57
full specs

  • Used in satellite component ground vibration testing for sine, random and shaker shock
  • Low outgassing miniature accelerometer with TEDS
  • Hermetically sealed 0.57"x0.30"x0.26" titanium sensor
  • ±2000g range
  • 1.33 gram mass
  • Adhesive mounting
  • 5-44 coaxial jack electrical connector

Technique video for installation and removal of miniature accelerometers is key to obtaining valid measurements and to avoid damage to the accelerometer.

Rental Includes:
039A26-Removal tool
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information


352C23
full specs

  • 0.34"x0.16"x0.11" anodized aluminum sensor
  • ±1000g range
  • 0.2 gram mass
  • Adhesive mounting
  • 3-56 coaxial jack electrical connector. Included 10-ft integral cable terminating in 10-32 plug. Use 070A02 scope adaptor to terminate in BNC, or use 070A05 cable connector to 002C or 003C series cable.
  • /NC (No Cable) option available-use your own or choose custom length and configuration here.

Technique video for installation and removal of miniature accelerometers is key to obtaining valid measurements and to avoid damage to the accelerometer.

Rental Includes:
030A10-10-ft detachable cable. 3-56 plug to 10-32 plug
039A26-Removal tool
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: B&K 4516-001, Endevco 25A & 25B & 7625A


352A21
full specs

  • 0.45"x0.25"x0.14" Titanium sensor
  • ±500g range
  • 0.6 gram mass
  • Adhesive mounting
  • 3-56 coaxial jack electrical connector. Included 10-ft integral cable terminating in 10-32 plug. Use 070A02 scope adaptor to terminate in BNC, or use 070A05 cable connector to 002C or 003C series cable.
  • /NC (No Cable) option available-use your own or choose custom length and configuration here.

Technique video for installation and removal of miniature accelerometers is key to obtaining valid measurements and to avoid damage to the accelerometer.

Rental Includes:
030A10-10-ft detachable cable. 3-56 plug to 10-32 plug
039A27-Removal tool
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: B&K 4516-001, Endevco 25A & 25B & 7625A


352C22
full specs

  • 0.45"x0.25"x0.14" anodized aluminum sensor
  • ±500g range
  • 0.5 gram mass
  • adhesive mounting
  • 3-56 coaxial jack electrical connector. Included 10-ft integral cable terminating in 10-32 plug. Use 070A02 scope adaptor to terminate in BNC, or use 070A05 cable connector to 002C or 003C series cable.
  • /NC (No Cable) option available-use your own or choose custom length and configuration here.

Technique video for installation and removal of miniature accelerometers is key to obtaining valid measurements and to avoid damage to the accelerometer.

Rental Includes:
030A10-10-ft detachable cable. 3-56 plug to 10-32 plug
039A26-Removal tool
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: B&K 4517,  Dytran 3224A1, Endevco 27A11 & 27AM1-10 & 2250A & 2222C (charge type), Kistler 8778A500


352A24
full specs

  • 0.48"x0.28"x0.19" anodized aluminum sensor
  • ±50g range
  • 0.8 gram mass
  • adhesive mounting
  • 3-56 coaxial jack electrical connector. Included 10-ft integral cable terminating in 10-32 plug. Use 070A02 scope adaptor to terminate in BNC, or use 070A05 cable connector to 002C or 003C series cable.
  • /NC (No Cable) option available-use your own or choose custom length and configuration here.

Technique video for installation and removal of miniature accelerometers is key to obtaining valid measurements and to avoid damage to the accelerometer.

Rental Includes:
030A10-10-ft detachable cable. 3-56 plug to 10-32 plug
039A26-Removal tool
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: Dytran 3225M24, Endevco 27A12 & 27AM1-100 & 2222D (charge type)

General Purpose Accelerometers     Back to Top

These units cover a wide range of tests ranging from vibration control to machine testing, and product qualification. Sensors detailed measure either ±50g or ±500g ranges, but piezoelectric accelerometers often measure an extremely high dynamic range and are perfectly suited for measurements of quite low vibration levels.


352A60
full specs

  • 0.375" hex stainless steel sensor
  • ±500g range
  • 6 gram mass
  • 10-32 integral stud mounting
  • 5-44 coaxial jack electrical connector used with 003P or 018C cable series

Rental Includes:
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from 5 Hz to 10 kHz. Data to upper 3dB point included using resonance sweep or gravimetric method; high frequency calibration is traceable but not A2LA accredited.


353B15
full specs

  • 0.31" hex titanium sensor
  • ±500g range
  • 2 gram mass
  • 5-40 integral stud mounting
  • 5-44 coaxial jack electrical connector used with 003P or 018C cable series

Rental Includes:
080A15-Adhesive mounting base, 0.312" hex x 0.125" thk, 5-40 tapped hole, aluminum w/insulating hardcoat finish
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: B&K 4519, Dytran 3035B1, Endevco 256-10, Kistler 8720A500


353B17
full specs

  • 0.28" hex titanium sensor
  • ±500g range
  • 1.7 gram mass
  • 5-40 integral stud mounting
  • 10-ft integral cable terminating in 10-32 plug. Use 070A02 scope adaptor to terminate in BNC, or use 070A05 cable connector to 002C or 003C series cable.

Rental Includes:
080A15-Adhesive mounting base, 0.312" hex x 0.125" thk, 5-40 tapped hole, aluminum w/insulating hardcoat finish
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information




353B18
full specs

  • 0.28" hex titanium sensor
  • ±500g range
  • 1.8 gram mass
  • 5-40 integral stud mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C cable series

Rental Includes:
080A15-Adhesive mounting base, 0.312" hex x 0.125" thk, 5-40 tapped hole, aluminum w/insulating hardcoat finish
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: B&K 4518, Dytran 3145A1, Kistler 8730A500

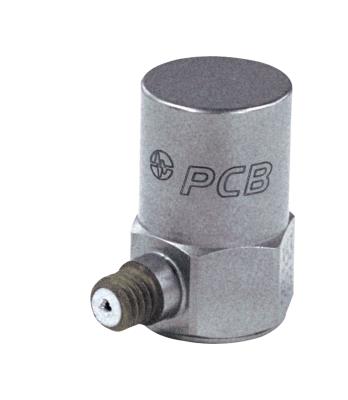

353B03
full specs

  • 0.5" hex titanium sensor
  • ±500g range
  • 10.5 gram mass
  • 10-32 female mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C cable series

Rental Includes:
080A-Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
081B05-10-32 to 10-32 adaptor stud
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: Dytran 3056B1, Kistler 8704B500


353B04
full specs

  • 0.5" hex titanium sensor
  • ±500g range
  • 10.5 gram mass
  • 10-32 female mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C cable series

Rental Includes:
080A-Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
081B05-10-32 to 10-32 adaptor stud
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: Dytran 3056B1, Kistler 8704B500


TLD352C03
full specs

  • 7/16" hex titanium sensor
  • ±500g range
  • 5.8 gram mass
  • 10-32 integral stud mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C cable series

Rental Includes:
080A15-Adhesive mounting base
081B05-Mounting Stud (10-32 to 10-32)
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to:


TLD352C33
full specs

  • 0.44" hex titanium sensor
  • ±50g range
  • 5.8 gram mass
  • 10-32 female
  • 10-32 coaxial jack electrical connector used with 002C or 003C cable series

Rental Includes:
080A-Adhesive mounting base
081B05-Mounting Stud (10-32 to 10-32)
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to:


352C65
full specs

  • 0.312" hex titanium sensor
  • ±50g range
  • 2 gram mass
  • 5-40 integral stud mounting
  • 5-44 coaxial jack electrical connector used with 003P or 018C cable series

Rental Includes:
080A15-Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: B&K 4519-001, Dytran 3035B, Endevco 256-100, Kistler 8776A50


352C68
full specs

  • 0.28" hex titanium sensor
  • ±50g range
  • 2 gram mass
  • 5-40 integral stud mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C cable series

Rental Includes:
080A15-Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: B&K 4518-001, Dytran 3145A, Kistler 8774A50


352B
full specs

  • 0.75" hex titanium sensor
  • ±5g range
  • 25 gram mass
  • 10-32 female mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C cable series

Rental Includes:
080A15-Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information


353B33
full specs

  • 0.75" hex titanium sensor
  • ±50g range
  • 27 gram mass
  • 10-32 female mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C cable series

Rental Includes:
080A15-Adhesive mounting base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: B&K 4518-001, Dytran 3145A, Kistler 8774A50


351B41
full specs

  • Cryogenic ICP sensor usable to -320°F (-196°C)
  • 0.75" hex titanium sensor
  • ±15g range
  • 40 gram mass
  • 10-32 female mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C cable series

Rental Includes:
081B05-10-32 to 10-32 adaptor stud
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Modal Array Accelerometers     Back to Top

Excellent phase characteristics and lightweight construction, ideal for structural vibration, multi-channel modal analysis, analytical model correlation, and force-response testing. Many units have TEDS functionality as an option, see information below. A wide range of structural test hardware is also available, including shakers and impact hammers, as well as large-channel cable management solutions.


T333B32 (TEDS version)
full specs

  • 0.4"x0.63"x0.4" titanium cube sensor
  • ±50g range
  • 4 gram mass
  • adhesive mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C cable series

Rental Includes:
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: B&K 4507-002, Dytran 3097A2, Kistler 8640A50


333B
TEDS version available (TEDS notes)
full specs

  • 0.48" diameter polymer sensor
  • ±50g range
  • 5.6 gram mass
  • adhesive base mounting
  • 3 pin socket connector used with 080B cable series

Rental Includes:
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information




TLD333B30
full specs

  • 0.40" titanium cube sensor
  • ±5000g range
  • 4.0 gram mass
  • 5-40 female mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C cable series

Rental Includes:
080A25-Adhesive mounting base, 0.438" hex, 5-40 tapped hole, aluminum hardcoat
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: Kistler 8640A5


TLD333B50
full specs

  • 0.45" titanium cube sensor
  • ±5g range
  • 7.5 gram mass
  • 5-40 female mounting
  • 10-32 coaxial jack electrical connector used with 002C or 003C cable series

Rental Includes:
080A25-Adhesive mounting base, 0.438" hex, 5-40 tapped hole, aluminum hardcoat
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: Kistler 8640A5

High Temperature Accelerometers     Back to Top

Adjusted circuitry allows measurement of these units in temperatures to +325°F (163°C) and are used with traditional ICP power systems. Slight low frequency and broadband resolution specifications may be affected.


HT352A21
full specs

  • High temperature version of 352A21, temperature range -65 to +325 °F
  • 0.45"x0.25"x0.14" Titanium sensor
  • ±500g range
  • 0.6 gram mass
  • Adhesive mounting
  • 3-56 coaxial jack electrical connector. Included 10-ft integral cable terminating in 10-32 plug. Use 070A02 scope adaptor to terminate in BNC, or use 070A05 cable connector to 002C or 003C series cable.
  • /NC (No Cable) option available-use your own or choose custom length and configuration here.

Technique video for installation and removal of miniature accelerometers is key to obtaining valid measurements and to avoid damage to the accelerometer.

Rental Includes:
030A10-10-ft detachable cable. 3-56 plug to 10-32 plug
039A27-Removal tool
Calibration - NIST traceable and ISO 17025/A2LA accredited calibration from at least 10 Hz to upper 5% point (TMS: MCS-A001 or PCB: ACS-1). See notes on calibration for additional information

Similar to: B&K 4516-001, Endevco 25A & 25B & 7625A

Notes on Calibration     Back to Top

Calibration data is provided electronically (on CD or USB memory stick) or as printed copies, depending on quantity rented and end-user preference.

The Modal Shop has internal calibration intervals set for most test products at 1 year. ANSI/ISO/IEC 17025:2000 makes clear that it is the responsibility of the end-user organization (in this case, the renter) to determine the appropriate calibration interval under the requirements of its own quality system. Per this, calibration certificates of rented equipment have "calibrated on" dates, but blank "calibration due" dates. Rentals ship with a customer specific expected return date in mind - if equipment is expected out for 5 months, the last calibration date will be within the past 7 months. Calibration to additional standards (e.g. Z540 or specific FAA requirements) are possible, but there may be an additional charge.

The Modal Shop's Scope of Accreditation can be found here. An example of a calibrations certificate can be found here. Please contact us with questions or if a different calibration will be needed for your rental sensors.

Notes on TEDS (Transducer Electronic Data Sheet)     Back to Top

The TEDS option is available on several rental transducers. TEDS stands for Transducer Electronic Data Sheet and provides memory within a sensor with manufacturer name, sensor type, model number, serial number and calibration data. It is an approved IEEE standard (1451.4), and many data acquisition manufacturers include the ability to read TEDS sensors. Not sure if your DAQ has TEDS capability? No problem; TEDS sensors can be used alongside non-TEDS sensors with no issues; the TEDS memory is bypassed. Want more information? See our TEDS FAQ .
