4-conductor Cables for Sensors

Used with ICP® triaxial sensors and single axis MEMS sensors

Select a cable that mates the selected sensor to the signal conditioning or matching hardware. See related accelerometer pages to determine what cable connection mates with each sensor.

Multi Lead Cables for Triaxial Sensors
Series Description Temp Range °F Capacitance Diameter
010 General Purpose FEP cable. Good tensile strength and temperature resistance. Less resistant to abrasions or cuts. -130 to +392 26pF/ft 0.10in
034 General Purpose Lightweight FEP cable. Good tensile strength and temperature resistance. Can kink and less resistant to abrasions or cuts. -130 to +392 25pF/ft 0.077in
078 Rugged and Flexible Polyurethane cable. Resists abrasions and cuts and offers excellent flexibility. Limited temperature range. -58 to +185 25pF/ft 0.119in
019 Flexible and Lightweight Silicone cable. Excellent flexibility but has low tensile strength and can tear easily. -76 to +500 26pF/ft 0.07in
036 Flexible Silicone cable. Excellent flexibility but has low tensile strength and can tear easily. -76 to +392 24pF/ft 0.10in


NEW Cables Added to Rental!

IP68 Rated Cable Connector

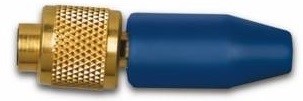

034W and 078W Series cables feature the cable termination Model RB, an IP68-rated 1/4-28 4-socket plug connector end. These cables are ideal for use in applications that include splash, short-term submersion or dusty environments.

Triaxial Connector Styles
  4-Pin (1/4-28)
Microtech Jack
[PCB Cable Termination Model CA]
 [PCB Triple Splice Assembly JY] includes (3) 10-32 plugs (labeled X,Y,Z)
[Terminates in 3x PCB Model EB]
 [PCB Triple Splice Assembly JW] includes (3) BNC plugs (labeled X,Y,Z)
[Terminates in 3x PCB Model AC]
 Pigtail
(no connector, stripped and tinned ends only)
PCB Cable Termination Model DZ
4-Pin Jack (1/4-28)
PCB Cable Termination
Model CA
 010D Series
010D10 [10ft]
010D20 [20ft]
010D30 [30ft]		   010G Series
010G05 [5ft]
010G10 [10ft]
010G20 [20ft]
010G30 [30ft]
010G50 [50ft]

078G Series
078G10 [10ft]
078G20 [20ft]
078G30 [30ft]
078G50 [50ft]		 034G Series
034G05 [5ft]
034G10 [10ft]
034G20 [20ft]
034G30 [30ft]
034G50 [50ft]		 010P Series
010P10 [10ft]
010P20 [20ft]
010P30 [30ft]
010P50 [50ft]

034A Series
034A05 [5ft]
034A50 [50ft]
4-Pin Plug (1/4-28)
PCB Cable Termination
Model AY
 010AYxxxCA
010AY020CA [20ft]
010AY035CA [35ft]
010AY100CA [100ft]

078AYxxxCA Series
078AY100CA [100ft]		 034F Series
034F10 [10ft]
034F20 [20ft]
034F30 [30ft]
034F50 [50ft]

034H Series
034H20 [20ft]
034H30 [30ft]
034H50 [50ft]		 036G Series
036G10 [10ft]
036G20 [20ft]
IP68 Rated
4-Pin Plug (1/4-28)
PCB Cable Termination
Model RB
     034W Series
034W10 [10ft]
034W20 [20ft]
034W30 [30ft]
034W50 [50ft]		 078W Series
078W10 [10ft]
078W20 [20ft]
4-Pin Miniature Jack (8-36)
PCB Cable Termination
Model HJ
 034EHxxxCA Series
034EH050CA [50ft]		   034K Series
034K10 [10ft]
034K20 [20ft]
034k30 [30ft]
034K50 [50ft]		 019B Series
019B05 [5ft]
019B10 [10ft]
019B20 [20ft]


Extension Cables for Triaxial Accelerometers

Used between triaxes and any cable above to extend length, connection to mate with sensor at one end and 1/4"-28 4 pin jack at the other.

010AY020CA

4-pin jack to 4-pin plug (1/4-28 male), 20ft

010AY050CA

4-pin jack to 4-pin plug (1/4-28 male), 50ft

010AY100CA

4-pin jack to 4-pin plug (1/4-28 male), 100ft

034EH050CA

Mini 4-pin plug (8-36 female) to 4 pin jack (1/4-28 male) , 50 ft

078AY100CA

4-pin jack (8-36 female) to 4-pin plug (1/4-28 male) , 100 ft

Cables for DC Triaxial Accelerometers

037P Series

9-socket plug to pigtails

  • 037P10 [10ft]
  • 037P20 [20ft]
  • 037P30 [30ft]

037A Series

9-socket plug to (3) 4-socket plugs

  • 037A10 [10ft]
  • 037A20 [20ft]
  • 037A30 [30ft]

Triaxial to LEMO cable connections for SCADAS Analyzers

Connect standard triaxial accelerometers with one cable to a 9-pole LEMO input connector with pinout matched for Siemens PLM Simcenter SCADAS V-24 cards or SCADAS XS.

010M136/M003

Standard 1/4-28 4-pin plug to 9-pin LEMO (FGG.0B.309.CLAD56) cable, 3 meter length. For longer cable lengths, use triaxial extension 010AYxxxCA type cable.

Alternate PCB Model Number: 010M136-0002

010M136/020

Standard 1/4-28 4-pin plug to 9-pin LEMO (FGG.0B.309.CLAD56) cable, 3 meter length. 20ft version of 010M136.

Alternate PCB Model Number: 010M136-0021

034M59/M003

Miniature 8-36 4-pin plug to 9-pin LEMO (FGG.0B.309.CLAD56) cable, 3 meter length. For longer cable lengths, do not use this cable. Instead, consider using a combination of triaxial extension 034EHxxxCA type cable to mate with miniature sensor end, in conjunction with 010M136/M003 cable above.

Alternate PCB Model Number: 034M59-0002
