The Dynamic Sensor Calibration Workstation Model 9155 delivers accurate back-to-back comparison calibration of ICP® (IEPE), charge mode, and piezoelectric accelerometers in accordance with ISO 16063 21: 2003 (accelerometers) and/or IEC 61094- 5 (microphones). Options to calibrate piezoresistive, capacitive, velocity, 4‑20 mA, visual output (meters), and dynamic pressure sensors are also available. A range of vibration and shock exciter options bring you a wide scope of capabilities. Each system provides all the necessary components ‘out-of-the-box’ – from precision actuators to state-of-the-art data acquisition hardware paired with a Windows® PC software controller. An extensive language database allows local language support no matter what part of the globe you call home.

The 9155 software serves as the central hub of each 9155 Calibration System. It controls system hardware and acquires data for the wide range of SUT’s. This common user interface reduces customer training costs by providing a familiar experience for test setup, data management, and report generation. This familiar interface also allows operators to focus on the intricate details of SUT mounting and operation, reducing the risk of procedural errors.

A range of options below allow users to create a system to fit the exact needs of their laboratory. A modular design offers the ability to expand the functionality of an existing 9155 set up at any time.

High Frequency Vibration  |  Low Frequency Vibration  |  Shock
Acoustic Microphones  |  Dynamic Pressure  |  Visual Output

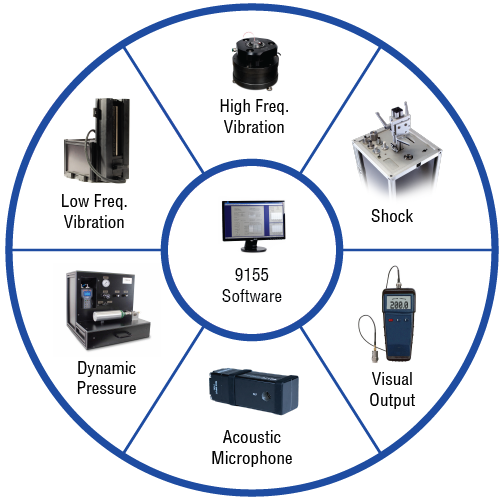

Hub and Spoke Wheel



High Frequency Vibration
Model 9155D-830 / -831

  • Precision air bearing shaker with low transverse motion
  • Lorentz force coil enables rapid centering of sensors with varying mass
  • Rugged, reliable design proven in PCB® production lines
  • 9155D-830 5 Hz to 15 kHz
    9155D-831 5 Hz to 20 kHz



Low Frequency Vibration
Model 9155D-771 / -779

  • Calibration from 0.1 to 10 Hz
  • Efficient process with embedded SmartSine™ Controller
  • Accuracy via patented Optical Encoder Reference



Shock
Model 9155D-525

  • Calibration from 20 to 10 000 g
  • Controlled and Consistent impacts with pneumatically actuated exciter
  • Stand-alone PneuShock™ exciter available



Acoustic Microphones
Model 9155D-910

  • Comparison Calibration of microphones per IEC 61094-5
  • Supports frequency response correction to measurement data
  • Software option pairs with Microphone Comparison Calibrator Model 9917C



Dynamic Pressure Calibration
Models 9155D-903, -907, -913, -905

  • Low (150 psi, 1 MPa), Medium (1000 psi, 6.8 MPa), High (15 000 psi, 103 kPa), and Ultra High Pressure (80 000 psi, 550 MPa) pressure versions available
  • Reproduce PCB factory calibration techniques



Visual Output Calibration
Model 9155D-680

  • Calibration of Sensors with visual output, such as vibration meters
  • Supports both velocity and acceleration
